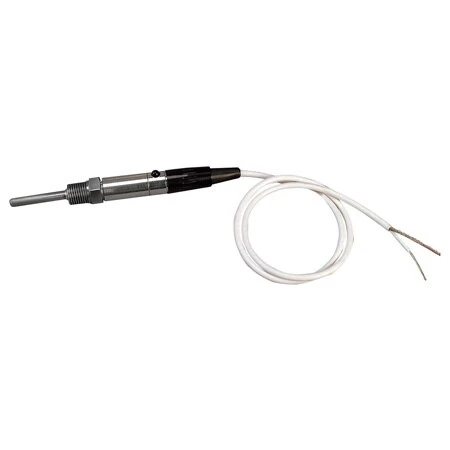

Thermistor Probe With Detachable Connector Assy

Original price was: $135.22.Current price is: $96.99.

Closed Ended 300 Series Stainless Steel Probe, 5/32′ Diameter by 1′ Long With 1/8NPT Mounting Thread and Connector
Can Be Installed Directly Into Pressure Vessels
Datachable Cable Allows for Removal When Not Required
Available with Resistances of 2252 Ohms, 3000 Ohms, 5000 Ohms, 10,000 Ohms and 30,000 Ohms at 25°C

Process Temperature Max

Process Temperature Range

Accuracy

Nominal Output

Cable Length

Termination Connection Type

Clear

SKU: ON-920TA-44005 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

This sensor is desighed to be used in immersion applications where it will be mounted into a process or pressure vessel using a 1/8NPT threaded port. The integral connector and supplied mating connector with cable allow for continuous monitoring of the sensor, or allows for removal of the connector and cable for only periodic monitoring.

Process Temperature Max	100, 75
Process Temperature Range	-80 to 100°C (-22 to 212°F), -80 to 75°C (-22 to 165°F)
Accuracy	±0.2°C, ±0.1°C
Nominal Output	3000 Ω @ 25°C, 2252 Ω @ 25°C, 10,000 Ω @ 25°C, 5000 Ω @ 25°C, 30000 Ω @ 25°C
Cable Length	12 in, 45 in, 360 in, 40 in
Termination Connection Type	Stripped Leads, Phone Plug
Category	Thermistor
Process Temperature Unit	°C
Process Temperature Min	-80
Sensor Application	Immersion Probe
Process Connection Size	1/8" NPT
Number Of Wires	2
Sheath Material	304 Stainless Steel
Probe Diameter	0.156 in
Probe Length	1 in
Cable Insulation	PVC
