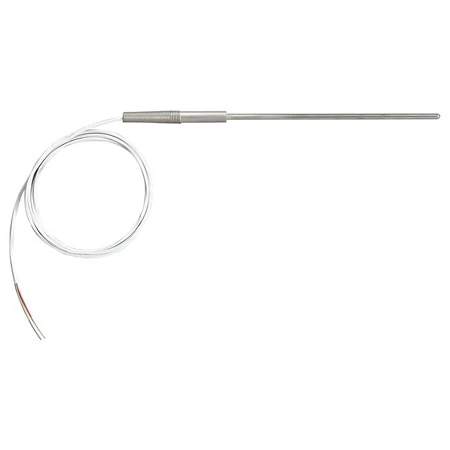

Thermistor Probes With Lead Wire And Metal Transition

Original price was: $153.76.Current price is: $98.99.

Max. Temp: 150°C for Standard Probe
36′ Insulated, 26 AWG Stranded Lead Wire
316SS Sheath
1/8, 3/16 and 1/4 ‘ Diameter Sheaths Available

Accuracy

Nominal Resistance

Probe Diameter

Probe Length

Termination Connection Type

Clear

SKU: TJ36-44004-1/8-12 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The general purpose transition joint probe style is now available with any of our 44000 series thermistors as sensing elements. The probe transitions to 36″ of PFA-insulated two-conductor lead wire and terminates in stripped leads.

For Special Options Consult Sales or Temperature Engineering for Availability and Pricing.

View the Thermocouple Accuracy and Color Code charts

Accuracy	±0.2°C, ±0.1°C
Nominal Resistance	2252 Ω, 3000 Ω, 10,000 Ω, 5000 Ω, 30,000 Ω
Probe Diameter	0.125 in, 0.250 in, 0.187 in, 6.00 mm, 4.50 mm
Probe Length	12 in, 6 in, 3 in, 300 mm
Termination Connection Type	Stripped Leads, Phone Plug
Category	Thermistor
Sensor Application	Transition Joint Style
Sheath Material	316 Stainless Steel
Cable Insulation	PFA
Wire Gauge	26 AWG
Cable Length	40 in
