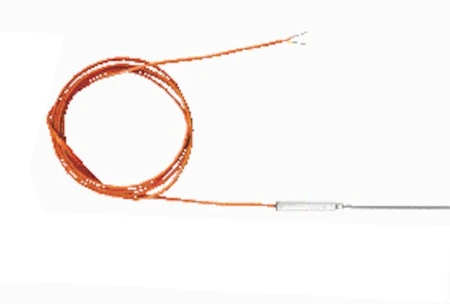

Thermocouple Probes With A Compact Transition To Lead Wire

Original price was: $64.62.Current price is: $45.23.

Ideal for Applications Where Space is Limited
304 SS and Inconel^® 600 sheaths. Also available with Super Omegaclad^® XL Sheath!
24 AWG Stranded for All Probes
Transition Joint Dia. of 4.5 mm (0.177 in.)

Thermocouple Type

Termination Connection Type

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJC36-CPSS-040U-12 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Calibration ANSI Code	Sheath Material	Sheath Dia. mm(in.)	Upper Temp. Limit T/C Junnction °C (°F)	Model Number
K CHROMEGA™- ALOMEGA™	304SS	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.0 (0.040) 1.59 (0.062)	260 (500) 371 (700) 550 (1112) 550 (1112) 899 (1650)	TJC36-CASS-010()-() TJC36-CASS-020()-(*) TJC36-CASS-032()-(*) TJC36-CASS-040()-(*) TJC36-CASS-062()-(**)
	Inconel^® 600	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.0 (0.040) 1.59 ( 0.062)	260 (500) 371 (700) 700 (1290) 700 (1290) 921 (1690)	TJC36-CAIN-010()-() TJC36-CAIN-020()-(*) TJC36-CAIN-032()-(*) TJC36-CAIN-040()-(*) TJC36-CAIN-062()-(**)
	Super OMEGACLAD™ XL	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.0 (0.040) 1.59 ( 0.062)	316 (600) 427 (800) 815 (1500) 815 (1500) 1038 (1900)	TJC36-CAXL-010()-() TJC36-CAXL-020()-(*) TJC36-CAXL-032()-(*) TJC36-CAXL-040()-(*) TJC36-CAXL-062()-(**)
J Iron- Constantan	304SS	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.0 (0.040) 1.59 ( 0.062)	204 (400) 260 (500) 260 (500) 260 (500) 441 (825)	TJC36-ICSS-010()-() TJC36-ICSS-020()-(*) TJC36-ICSS-032()-(*) TJC36-ICSS-040()-(*) TJC36-ICSS-062()-(**)
T Copper- Constantan	304SS	0.50 (0.020) 0.80 (0.032) 1.0 (0.040) 1.59 (0.062)	260 (500) 260 (500) 260 (500) 260 (500)	TJC36-CPSS-020()-() TJC36-CPSS-032()-(*) TJC36-CPSS-040()-(*) TJC36-CPSS-062()-(**)

Notes: *Specify Junction: (G)rounded, (E)xposed or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number. See ordering examples below.

Thermocouple Type	T, K, J, N
Category	Thermocouple
Color Code Standard	ANSI (Standard)
Cable Length	40 in
Wire Gauge	24 AWG
Cable Insulation	PFA
Process Temperature Min	0
Process Temperature Unit	°C
Termination Connection Type	Stripped Leads, Miniature Connector
Process Temperature Max	260, 700, 920, 800, 1038
Probe Length	12 in, 6 in, 36 in, 8 in, 48 in, 4 in, 24 in, 18 in, 3 in, 30 in, 2 in, 60 in
Probe Diameter	0.040 in, 0.010 in, 0.020 in, 0.032 in, 0.062 in
Junction Type	Ungrounded, Exposed, Grounded
Sheath Material	304 Stainless Steel, Inconel® 600, Super OMEGACLADâ„¢ XL, 316 Stainless Steel
Sensor Application	Immersion Probe, Air Probe
Process Temperature Range	0 to 260°C (32 to 500°F), 0 to 700°C (32 to 1290°F), 0 to 920°C (32 to 1690°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F)
Additional Feature	none
