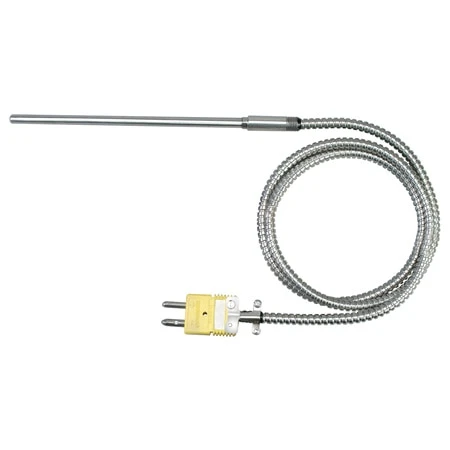

Thermocouple Probes With BX Armor Cable & Standard Connector

Original price was: $93.04.Current price is: $65.13.

Rigid Stainless Steel BX Armor Cable Offers pierce and Splash Protection from Tools, Solder, Molten Plastics, etc.
Manufactured with OMEGACLAD™ Compacted Mineral Insulated Cable for Long-Lasting, Low-Drift Performance in Harsh Conditions
1 m (40′) Lead Length Standard
304 SS and Inconel Sheaths: Additional Sheaths Available: 310 SS, 316 SS, 321 SS and Super OMEGACLAD™ XL

Thermocouple Type

Termination Connection Type

Additional Feature

Cable Insulation

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJ36-ICIN-14U-12-BX-OSTW-M Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Matching Super OMEGACLAD™ XL mineral insulated thermocouple cable with our rugged transition joint probes and BX armored cable makes a combination that’s hard to beat! Perfect for quick readings at higher temperatures or monitoring elevated temperatures for extended periods of time.

Calibration ANSI Code	Sheath Materials	Sheath Dia. mm (in.)	T/C Junction Upper Temp. °C (°F)	Model Number (See notes, below)
K CHROMEGA™- ALOMEGA™ =”#000000″>	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	899 (1650) 899 (1650) 899 (1650) 899 (1650)	TJ36-CASS-116()-()-BX-OSTW-M TJ36-CASS-18()-(*)-BX-OSTW-M TJ36-CASS-316()-(*)-BX-OSTW-M TJ36-CASS-14()-(**)-BX-OSTW-M
	Inconel^® 600	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	921 (1690) 1071 (1960) 1149 (2100) 1149 (2100)	TJ36-CAIN-116()-()-BX-OSTW-M TJ36-CAIN-18()-(*)-BX-OSTW-M TJ36-CAIN-316()-(*)-BX-OSTW-M TJ36-CAIN-14()-(**)-BX-OSTW-M
	Super OMEGACLAD™ XL	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	1038 (1900) 1149 (2100) 1204 (2200) 1204 (2200)	TJ36-CAXL-116()-()-BX-OSTW-M TJ36-CAXL-18()-(*)-BX-OSTW-M TJ36-CAXL-316()-(*)-BX-OSTW-M TJ36-CAXL-14()-(**)-BX-OSTW-M
J Iron- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	441 (825) 521 (970) 621 (1150) 721 (1330)	TJ36-ICSS-116()-()-BX-OSTW-M TJ36-ICSS-18()-(*)-BX-OSTW-M TJ36-ICSS-316()-(*)-BX-OSTW-M TJ36-ICSS-14()-(**)-BX-OSTW-M
T Copper- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	260 (500) 316 (600) 371 (700) 371 (700)	TJ36-CPSS-116()-()-BX-OSTW-M TJ36-CPSS-18()-(*)-BX-OSTW-M TJ36-CPSS-316()-(*)-BX-OSTW-M TJ36-CPSS-14()-(**)-BX-OSTW-M

Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	J, K, T, E
Termination Connection Type	Standard Connector, Miniature Connector
Cable Length	40 in
Wire Gauge	20 AWG
Process Temperature Min	0
Process Temperature Unit	°C
Category	Thermocouple
Additional Feature	none, Dual Elements
Cable Insulation	PFA with Armored Cable, Fiberglass with Armored Cable, PFA, PFA with Stainless Steel Overbraid
Process Temperature Max	720, 920, 1150, 1070, 800, 1038, 1204, 370, 260, 315, 820, 520, 620, 440
Probe Length	12 in, 6 in, 18 in, 36 in, 72 in, 4 in, 3 in, 48 in, 8 in, 24 in, 9 in
Probe Diameter	0.250 in, 0.062 in, 0.125 in, 0.187 in, 0.032 in, 0.040 in
Junction Type	Ungrounded, Exposed, Grounded
Sheath Material	Inconel® 600, 304 Stainless Steel, Super OMEGACLADâ„¢ XL
Sensor Application	Immersion Probe, Air Probe
Process Temperature Range	0 to 720°C (32 to 1300°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 370°C (32 to 700°F), 0 to 260°C (32 to 500°F), 0 to 315°C (32 to 600°F), 0 to 820°C (32 to 1510°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F), 0 to 440°C (32 to 825°F)
Color Code Standard	ANSI (Standard)
