Thermocouple Probes With BX Armor Or SS Braid Cable

Original price was: $95.61.Current price is: $66.93.

304 SS and Inconel 600 Additional Sheaths Available: 310 SS, 316 SS, 321 SS and Super OMEGACLAD™ XL
Heavy Duty Probes
Leads Available with BX Armor or Stainless Steel Overbraid
12 Inch and 36 Inch Probe Lenghts Standard(Consult Sales for Other Lenghts)

Thermocouple Type

Cable Insulation

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJ36-ICSS-316U-36-BX-SMPW-M Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

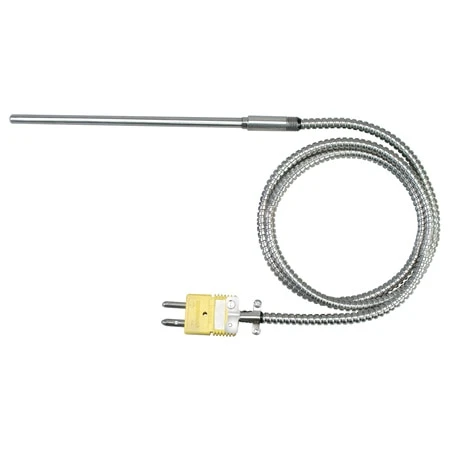

Heavy duty transition joint thermocouple, 900 mm (36″) long, with 900 mm (36″) BX type spiral armor cable. Available in 6, 4.5, 3, 1.5 mm (1/4, 3/16, 1/8 and 1/16″) OD, with Inconel 600 or 304 stainless steel sheath (consult sales for 316 SS), and SMPW subminiature connector.

Super OMEGACLAD™ XL sheaths are available for Type K thermocouples with BX armor and standard size connector option (OSTW). Replace “SS” in part number with “XL”. Contact Sales for pricing and availability.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	J, K, T, E, N
Category	Thermocouple
Color Code Standard	ANSI (Standard)
Termination Connection Type	Miniature Connector
Cable Length	40 in
Wire Gauge	24 AWG
Process Temperature Min	0
Process Temperature Unit	°C
Cable Insulation	PFA with Armored Cable, PFA, PFA with Stainless Steel Overbraid, Fiberglass with Armored Cable
Process Temperature Max	620, 920, 1150, 1070, 700, 1038, 1204, 370, 260, 315, 650, 730, 510, 820, 440, 720, 520
Probe Length	36 in, 12 in, 72 in, 18 in, 4 in, 48 in, 60 in, 6 in, 2 in, 24 in, 3 in, 8 in
Probe Diameter	0.187 in, 0.062 in, 0.250 in, 0.125 in, 0.010 in, 0.020 in
Junction Type	Ungrounded, Grounded, Exposed
Sheath Material	304 Stainless Steel, 316 Stainless Steel, Inconel® 600, Super OMEGACLADâ„¢ XL
Sensor Application	Immersion Probe, Air Probe
Process Temperature Range	0 to 620°C (32 to 1150°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 700°C (32 to 1290°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 370°C (32 to 700°F), 0 to 260°C (32 to 500°F), 0 to 315°C (32 to 600°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F)
Additional Feature	none
