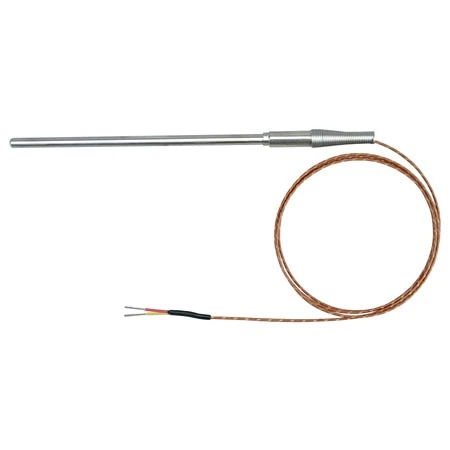

Thermocouple Probes With Fiberglass Lead Wire

Original price was: $77.69.Current price is: $54.38.

Use of Fiberglass and Ceramic Insulation Allows the Transition Joint to be Used Up to 482°C (900°F)
304 SS and Inconel 600
Additionnal Sheaths Available: 310 SS, 316 SS, 321 SS and Super OMEGACLAD™ XL
Manufactured with OMEGACLAD™ Compacted Mineral Insulation Cale for Long Lasting, Drift-Free Performance in Harsh Conditions

Thermocouple Type

Cable Length

Additional Feature

Color Code Standard

Termination Connection Type

Cable Insulation

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJ36-CPSS-18E-6-CC Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

For higher temperatures, choose Super OMEGACLAD™ XL mineral insulated thermocouple cable and our rugged transition joint probes, which are available in Type K and N calibrations. See the highlighted section in the table.

Calibration ANSI Code	Sheath Materials	Sheath Dia. mm (in.)	T/C Junction Upper Temp. °C (°F)	Model Number (See notes, below)
K CHROMEGA™- ALOMEGA™	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	899 (1650) 899 (1650) 899 (1650) 899 (1650)	TJ36-CASS-116()-()-CC TJ36-CASS-18()-(*)-CC TJ36-CASS-316()-(*)-CC TJ36-CASS-14()-(**)-CC
	Inconel^® 600	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	921 (1690) 1071 (1960) 1149 (2100) 1149 (2100)	TJ36-CAIN-116()-()-CC TJ36-CAIN-18()-(*)-CC TJ36-CAIN-316()-(*)-CC TJ36-CAIN-14()-(**)-CC
	Super OMEGACLAD™ XL	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	1038 (1900) 1149 (2100) 1204 (2200) 1204 (2200)	TJ36-CAXL-116()-()-CC TJ36-CAXL-18()-(*)-CC TJ36-CAXL-316()-(*)-CC TJ36-CAXL-14()-(**)-CC
J Iron- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	441 (825) 521 (970) 621 (1150) 721 (1330)	TJ36-ICSS-116()-()-CC TJ36-ICSS-18()-(*)-CC TJ36-ICSS-316()-(*)-CC TJ36-ICSS-14()-(**)-CC
T Copper- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	260 (500) 316 (600) 371 (700) 371 (700)	TJ36-CPSS-116()-()-CC TJ36-CPSS-18()-(*)-CC TJ36-CPSS-316()-(*)-CC TJ36-CPSS-14()-(**)-CC

Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	T, K, N, E, J
Cable Length	40 in, 1 m
Process Temperature Min	0
Process Temperature Unit	°C
Category	Thermocouple
Additional Feature	none, Dual Elements
Color Code Standard	ANSI (Standard), IEC
Termination Connection Type	Stripped Leads, Standard Connector
Cable Insulation	Fiberglass, Fiberglass with Armored Cable
Process Temperature Max	315, 1150, 920, 1070, 700, 800, 1038, 1204, 260, 370, 650, 440, 720, 520, 620
Probe Length	6 in, 150 mm, 450 mm, 12 in, 3 in, 8 in, 4 in, 120 in, 36 in, 18 in, 48 in, 24 in
Probe Diameter	0.125 in, 6.00 mm, 1.50 mm, 0.250 in, 0.062 in, 0.187 in, 0.032 in
Junction Type	Exposed, Ungrounded, Grounded
Sheath Material	304 Stainless Steel, Inconel® 600, 316 Stainless Steel, Super OMEGACLADâ„¢ XL
Sensor Application	Air Probe, Immersion Probe
Process Temperature Range	0 to 315°C (32 to 600°F), 0 to 1150°C (32 to 2100°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 700°C (32 to 1290°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 650°C (32 to 1200°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F)
Wire Gauge	24 AWG
