Sale!

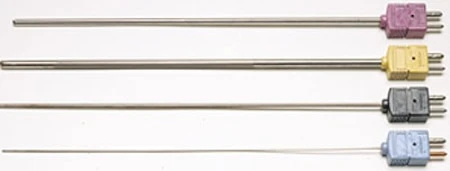

Thermocouple Probes With High Temperature Standard Connectors

Original price was: $53.76.Current price is: $37.63.

Made with Special Limits of Error Material
Connector Body Temp Rating: 260°C (500°F)
Environmentally Friendly, Cadmium-Free, Liquid Crystal Polymer Connector
Choice of 304 SS or Inconel Sheath (321 SS also Available)

Thermocouple Type

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Connector Color Code Standard

Additional Feature

Clear

SKU: HKQSS-116E-12 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Examples of Pricing for Popular Models is Referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for all available models.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	K, E, J, N, T
Process Temperature Range	0 to 260°C (32 to 500°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 620°C (32 to 1150°F), 0 to 920°C (32 to 1690°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 370°C (32 to 700°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 315°C (32 to 600°F)
Sensor Application	Air Probe, Immersion Probe
Sheath Material	304 Stainless Steel, Inconel® 600, 316 Stainless Steel, 310 Stainless Steel, Super OMEGACLAD™ XL, 321 Stainless Steel
Junction Type	Exposed, Grounded, Ungrounded
Probe Diameter	0.062 in, 0.250 in, 0.125 in, 0.187 in, 1.50 mm, 3.00 mm, 4.50 mm, 6.00 mm, 1/4 in
Probe Length	12 in, 18 in, 24 in, 6 in, 36 in, 4 in, 3 in, 300 mm, 8 in, 72 in, 600 mm, 96 in, 450 mm, 30 in, 900 mm, 2.5 in
Connector Color Code Standard	ANSI (Standard), IEC
Additional Feature	None, Immersion Probe
Sensor Type	Thermocouple
Connector Style	High Temp Standard Connector
