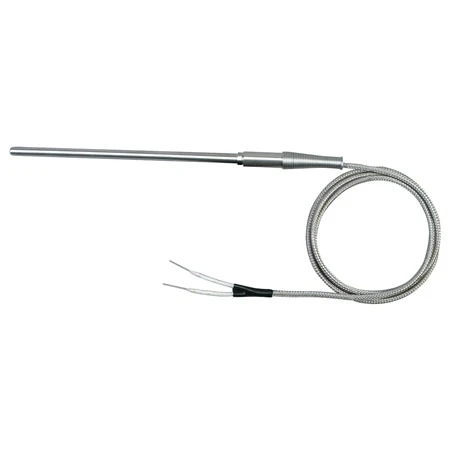

Thermocouple Probes With Inconel Overbraided Ceramic Cable

Original price was: $105.01.Current price is: $73.51.

Inconel^® Overbraided Silica Ceramic and Ceramic Insulated Lead Wire
Lead Wire Rated to 815°C (1500°)
304 SS and Inconel® 600 sheaths. Additional Sheaths Available: 310 SS, 316 SS, 321 SS and Super OMEGACLAD™ XL
Manufactured with OMEGACLAD™ Compacted Mineral Insulation Cable for Long-Lasting, Drift-Free Performance in Harsh Conditions

Thermocouple Type

Termination Connection Type

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJ36-ICSS-14E-6-CC-XSIB Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

For long life, drift-free operation, choose Super OMEGACLAD™ XL mineral insulated thermocouple cable and our rugged transition joint probes, which are available in Type K and N calibrations. Inconel^® overbraided silica ceramic and ceramic insulation provide cost-effective operation of the transition joint at temperatures up to 815°C (1500°F). See the highlighted section in the table.

Calibration ANSI Code	Sheath Materials	Sheath Dia. mm (in.)	T/C Junction Upper Temp. °C (°F)	Model Number (See notes, below)
K CHROMEGA™- ALOMEGA™	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	899 (1650) 899 (1650) 899 (1650) 899 (1650)	TJ36-CASS-116()-()-CC-XSIB TJ36-CASS-18()-(*)-CC-XSIB TJ36-CASS-316()-(*)-CC-XSIB TJ36-CASS-14()-(**)-CC-XSIB
	Inconel^® 600	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	921 (1690) 1071 (1960) 1149 (2100) 1149 (2100)	TJ36-CAIN-116()-()-CC-XSIB TJ36-CAIN-18()-(*)-CC-XSIB TJ36-CAIN-316()-(*)-CC-XSIB TJ36-CAIN-14()-(**)-CC-XSIB
	Super OMEGACLAD™ XL	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	1038 (1900) 1149 (2100) 1204 (2200) 1204 (2200)	TJ36-CAXL-116()-()-CC-XSIB TJ36-CAXL-18()-(*)-CC-XSIB TJ36-CAXL-316()-(*)-CC-XSIB TJ36-CAXL-14()-(**)-CC-XSIB
J Iron- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	441 (825) 521 (970) 621 (1150) 721 (1330)	TJ36-ICSS-116()-()-CC-XSIB TJ36-ICSS-18()-(*)-CC-XSIB TJ36-ICSS-316()-(*)-CC-XSIB TJ36-ICSS-14()-(**)-CC-XSIB

Notes: *Specify Junction: (G)rounded, (E)xposed or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number. See ordering examples below.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	J, K, N
Category	Thermocouple
Color Code Standard	ANSI (Standard)
Cable Length	40 in
Wire Gauge	24 AWG
Cable Insulation	Silica Ceramic with Inconel Overbraid
Process Temperature Min	0
Process Temperature Unit	°C
Termination Connection Type	Stripped Leads, Compensated spade lugs, Standard Connector, Miniature Connector
Process Temperature Max	720, 920, 1150, 1070, 1038, 1204, 440, 520, 620
Probe Length	6 in, 12 in, 24 in, 18 in, 8 in, 3 in
Probe Diameter	0.250 in, 0.062 in, 0.125 in, 0.187 in
Junction Type	Exposed, Grounded, Ungrounded
Sheath Material	304 Stainless Steel, Inconel® 600, Super OMEGACLADâ„¢ XL
Sensor Application	Air Probe, Immersion Probe
Process Temperature Range	0 to 720°C (32 to 1300°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 440°C (32 to 825°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F)
Additional Feature	none
