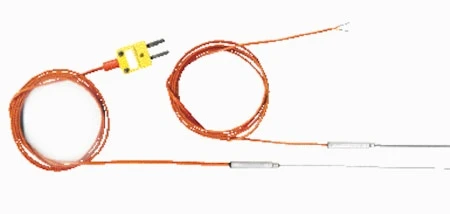

Thermocouple Probes With Lead Wire & Compact Transition

Original price was: $57.85.Current price is: $40.50.

Well Suited for Applications where Space is Limited
Compact Transition Joint – 4.5 mm (0.18′) dia. x 30 mm (1.18′) L
US and Metric Dimension Models in Stock
Made from Special Limits of Error Material

Thermocouple Type

Cable Length

Additional Feature

Color Code Standard

Termination Connection Type

Cable Insulation

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJC1-CAIN-IM150G-100 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Alloy/ANSI Color Code	Standard Sheath Dia.	Standard Dimension Model No.
J Iron-Constantan 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″	TJC36-ICSS-010()-(†) TJC36-ICSS-020()-(†) TJC36-ICSS-032()-(†) TJC36-ICSS-040()-(†) TJC36-ICSS-062(*)-(†)
K CHROMEGA™-ALOMEGA™ 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″	TJC36-CASS-010()-(†) TJC36-CASS-020()-(†) TJC36-CASS-032()-(†) TJC36-CASS-040()-(†) TJC36-CASS-062(*)-(†)
E CHROMEGA™-Constantan 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″	TJC36-CXSS-010()-(†) TJC36-CXSS-020()-(†) TJC36-CXSS-032()-(†) TJC36-CXSS-040()-(†) TJC36-CXSS-062(*)-(†)
T Copper-Constantan 304 SS Sheath	0.020″ 0.032″ 0.040″ 0.062″	TJC36-CPSS-020()-(†) TJC36-CPSS-032()-(†) TJC36-CPSS-040()-(†) TJC36-CPSS-062()-(†)
N** OMEGALLOY™ Inconel 600 Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″	TJC36-NNIN-010()-(†) TJC36-NNIN-020()-(†) TJC36-NNIN-032()-(†) TJC36-NNIN-040()-(†) TJC36-NNIN-062(*)-(†)

* Specify junction type: E (Exposed), G (Grounded) or U (Ungrounded).
(†) Specify Length in inches, 6″ price shown; for 12″ use 6″ price plus additional price for length.

Note: For Super OMEGACLAD™ XL sheaths, replace “SS” or “IN” in part number with “XL”. Super OMEGACLAD™ XL probes are available in Type K and N calibrations only; contact Sales for more information.

Read this article if you need help in selecting the thermocouple junction

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	K, T, E, J, N
Cable Length	1 m, 120 in, 40 in, 48 in, 60 in
Process Temperature Min	0
Process Temperature Unit	°C
Category	Thermocouple
Additional Feature	none, Dual Elements, Immersion Probe
Color Code Standard	IEC, ANSI (Standard)
Termination Connection Type	Stripped Leads, Miniature Connector, Standard Connector, Ceramic Miniature Connector, High Temp Miniature Connector, Miniature Connector with Cable Clamp, M12 Connector
Cable Insulation	PFA, Fiberglass
Process Temperature Max	920, 260, 700, 800, 1038, 300, 440, 1070, 315, 510
Probe Length	100 mm, 3 in, 150 mm, 300 mm, 200 mm, 75 mm, 600 mm, 450 mm, 1800 mm, 1500 mm, 48 in, 6 in, 7 in, 8 in, 12 in, 60 in, 72 in, 120 in, 4 in, 24 in, 18 in, 10 in, 36 in, 20 in, 2 in, 5 in
Probe Diameter	1.50 mm, 0.062 in, 0.25 mm, 0.50 mm, 0.75 mm, 1.00 mm, 2.00 mm, 3.00 mm, 0.020 in, 0.010 in, 0.040 in, 0.032 in, 0.125 in
Junction Type	Grounded, Ungrounded, Exposed
Sheath Material	Inconel® 600, 304 Stainless Steel, 321 Stainless Steel, Super OMEGACLADâ„¢ XL, 310 Stainless Steel, 316 Stainless Steel
Sensor Application	Immersion Probe, Air Probe
Process Temperature Range	0 to 920°C (32 to 1690°F), 0 to 260°C (32 to 500°F), 0 to 700°C (32 to 1290°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 300°C (32 to 570°F), 0 to 440°C (32 to 825°F), 0 to 1070°C (32 to 1960°F), 0 to 315°C (32 to 600°F), 0 to 510°C (32 to 950°F)
Wire Gauge	24 AWG
