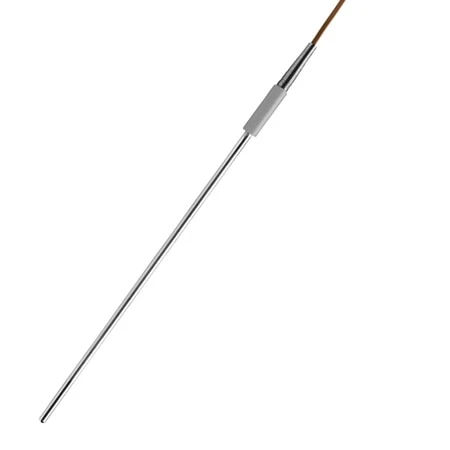

Thermocouple Probes With Lead Wire & Molded Mini Transition

Original price was: $80.12.Current price is: $56.08.

6′ and 12′ Lengths in Stock
40′ PFA Coated Lead Wires Standard
Sheath Diameters from 0.010′ to 0.125′
304SS or 321SS Sheath

Thermocouple Type

Termination Connection Type

Additional Feature

Color Code Standard

Cable Length

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TMTSS-125E-6-CL5 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Thermocouple Probes With Lead Wire & Molded Mini Transition -Omega Engineering Sales Store jmtss
Shown smaller than actual size
Now available in Type N, Inconel N or K High Performance XL material..

Alloy/ANSI Color Code	Sheath Dia. in.	Model No. 6″ Length	Model No. 12″ Length
J Iron- Constantan 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″ 0.125″	JMTSS-010()-6 JMTSS-020()-6 JMTSS-032()-6 JMTSS-040()-6 JMTSS-062()-6 JMTSS-125()-6	JMTSS-010()-12 JMTSS-020()-12 JMTSS-032()-12 JMTSS-040()-12 JMTSS-062()-12 JMTSS-125()-12
**K CHROMEGA™ ALOMEGA™ 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″ 0.125″	KMTSS-010()-6 KMTSS-020()-6 KMTSS-032()-6 KMTSS-040()-6 KMTSS-062()-6 KMTSS-125()-6	KMTSS-010()-12 KMTSS-020()-12 KMTSS-032()-12 KMTSS-040()-12 KMTSS-062()-12 KMTSS-125()-12
E CHROMEGA™ Constantan 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″ 0.125″	EMTSS-010()-6 EMTSS-020()-6 EMTSS-032()-6 EMTSS-040()-6 EMTSS-062()-6 EMTSS-125()-6	EMTSS-010()-12 EMTSS-020()-12 EMTSS-032()-12 EMTSS-040()-12 EMTSS-062()-12 EMTSS-125()-12
T Copper- Constantan 304 SS Sheath	0.020″ 0.032″ 0.040″ 0.062″ 0.125″	TMTSS-020()-6 TMTSS-032()-6 TMTSS-040()-6 TMTSS-062()-6 TMTSS-125(*)-6	TMTSS-020()-12 TMTSS-032()-12 TMTSS-040()-12 TMTSS-062()-12 TMTSS-125(*)-12

*Specify junction type: E(exposed), G (grounded) or U(ungrounded). †Other lengths available, please consult Sales Department. To order with 304, 310, 316 or 321 SS sheath, change “ SS” in model number to “ 304SS”,“ 310SS”, “ 316SS” or “ 321SS” respectively; no additional charge. Consult Sales for lengths between 2 to 12″, or for lengths over 24″. Type N Inconel Sheathing is available, Contact Sales for model numbers.
**For Super OMEGACLAD™ XL, change “ SS” to “ XL” and add $3 to price. Note: Super OMEGACLAD XL is available only in Type K and N calibration.

Want to learn more about thermocouples? Click on the link to go to our thermocouple tutorial page!

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	T, E, J, K, N
Termination Connection Type	Stripped Leads, Miniature Connector, Miniature Connector with Cable Clamp, Standard Connector
Cable Insulation	PFA
Process Temperature Min	0
Process Temperature Unit	°C
Category	Thermocouple
Additional Feature	Batch Calibration Cert, none, Transition Junction
Color Code Standard	ANSI (Standard), IEC
Cable Length	40 in, 1 m
Process Temperature Max	315, 300, 510, 650, 260, 520, 440, 920, 1070, 700, 800, 1038, 1150
Probe Length	6 in, 12 in, 300 mm, 18 in, 24 in, 3 in, 150 mm, 8 in, 4 in, 55 in, 36 in, 2 in, 30 in, 100 mm, 42 in, 11 in, 28 in, 46 in, 60 in
Probe Diameter	0.125 in, 0.040 in, 0.062 in, 1.00 mm, 3.00 mm, 1.50 mm, 3.0 mm
Junction Type	Exposed, Ungrounded, Grounded
Sheath Material	304 Stainless Steel, Inconel® 600, 316 Stainless Steel, 310 Stainless Steel, Super OMEGACLADâ„¢ XL, 321 Stainless Steel
Sensor Application	Air Probe, Immersion Probe
Process Temperature Range	0 to 315°C (32 to 600°F), 0 to 300°C (32 to 570°F), 0 to 510°C (32 to 950°F), 0 to 650°C (32 to 1200°F), 0 to 260°C (32 to 500°F), 0 to 520°C (32 to 970°F), 0 to 440°C (32 to 825°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 700°C (32 to 1290°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 1150°C (32 to 2100°F)
Wire Gauge	24 AWG
