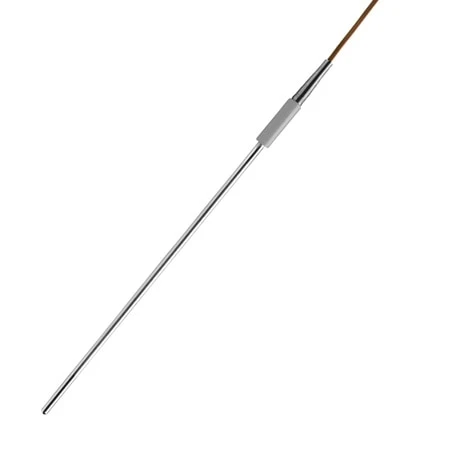

Thermocouple Probes With Lead Wire & Molded Transition
Original price was: $79.76.$55.83Current price is: $55.83.
- 12, 18 and 24′ Lengths Standard
- Other Lengths Available on Request
- Molded Junction Rated to 260°C (500°F)
- Color-Coded to Show Thermocouple Type
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Molded Transition Junction N Type calibration have been discontinued. For other Transition Juncation Probes with a N Calibration available, see the Model TJ36-NNIN Or TJC36-NNIN or TJ36-NNXL or please contact our Temperature Engineering department for a viable replacement.
Standard Dimensions
| Thermocouple Alloy | Sheath Dia. | Model No. 12″ Length | Model No. 18″ Length | Model No. 24″ Length |
| J IRON-CONSTANTAN Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | JTIN-116(*)-12 JTIN-18(*)-12 JTIN-316(*)-12 JTIN-14(*)-12 | JTIN-116(*)-18 JTIN-18(*)-18 JTIN-316(*)-18 JTIN-14(*)-18 | JTIN-116(*)-24 JTIN-18(*)-24 JTIN-316(*)-24 JTIN-14(*)-24 |
| J IRON-CONSTANTAN 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | JTSS-116(*)-12 JTSS-18(*)-12 JTSS-316(*)-12 JTSS-14(*)-12 | JTSS-116(*)-18 JTSS-18(*)-18 JTSS-316(*)-18 JTSS-14(*)-18 | JTSS-116(*)-24 JTSS-18(*)-24 JTSS-316(*)-24 JTSS-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | KTIN-116(*)-12 KTIN-18(*)-12 KTIN-316(*)-12 KTIN-14(*)-12 | KTIN-116(*)-18 KTIN-18(*)-18 KTIN-316(*)-18 KTIN-14(*)-18 | KTIN-116(*)-24 KTIN-18(*)-24 KTIN-316(*)-24 KTIN-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | KTSS-116(*)-12 KTSS-18(*)-12 KTSS-316(*)-12 KTSS-14(*)-12 | KTSS-116(*)-18 KTSS-18(*)-18 KTSS-316(*)-18 KTSS-14(*)-18 | KTSS-116(*)-24 KTSS-18(*)-24 KTSS-316(*)-24 KTSS-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ Super OMEGACLAD™ XL Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | KTXL-116(*)-12 KTXL-18(*)-12 KTXL-316(*)-12 KTXL-14(*)-12 | KTXL-116(*)-18 KTXL-18(*)-18 KTXL-316(*)-18 KTXL-14(*)-18 | KTXL-116(*)-24 KTXL-18(*)-24 KTXL-316(*)-24 KTXL-14(*)-24 |
| E CHROMEGA™-CONSTANTAN Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | ETIN-116(*)-12 ETIN-18(*)-12 ETIN-316(*)-12 ETIN-14(*)-12 | ETIN-116(*)-18 ETIN-18(*)-18 ETIN-316(*)-18 ETIN-14(*)-18 | ETIN-116(*)-24 ETIN-18(*)-24 ETIN-316(*)-24 ETIN-14(*)-24 |
| E CHROMEGA™-CONSTANTAN 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | ETSS-116(*)-12 ETSS-18(*)-12 ETSS-316(*)-12 ETSS-14(*)-12 | ETSS-116(*)-18 ETSS-18(*)-18 ETSS-316(*)-18 ETSS-14(*)-18 | ETSS-116(*)-24 ETSS-18(*)-24 ETSS-316(*)-24 ETSS-14(*)-24 |
| T COPPER-CONSTANTAN Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TTIN-116(*)-12 TTIN-18(*)-12 TTIN-316(*)-12 TTIN-14(*)-12 | TTIN-116(*)-18 TTIN-18(*)-18 TTIN-316(*)-18 TTIN-14(*)-18 | TTIN-116(*)-24 TTIN-18(*)-24 TTIN-316(*)-24 TTIN-14(*)-24 |
| T COPPER-CONSTANTAN 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TTSS-116(*)-12 TTSS-18(*)-12 TTSS-316(*)-12 TTSS-14(*)-12 | TTSS-116(*)-18 TTSS-18(*)-18 TTSS-316(*)-18 TTSS-14(*)-18 | TTSS-116(*)-24 TTSS-18(*)-24 TTSS-316(*)-24 TTSS-14(*)-24 |
*Specify junction type: E (exposed), G (grounded) or U (ungrounded). ††Supplied with Stainless Steel transition joints. To order with 310, 316 or 321 SS sheath, change “SS” in model number to “310SS”, “316SS” or “321SS” respectively; no additional charge. Consult Sales for lengths between 2 to 12″, or for lengths over 24″.
Note: For pricing/availability on Super OMEGACLAD™ XL probes, contact Sales or use the To Order or Part Number Builder below. Super OMEGACLAD™ XL probes are available in Type K calibrations only.
View the Thermocouple Accuracy and Color Code charts
| Thermocouple Type | J, E, K, T |
|---|---|
| Color Code Standard | ANSI (Standard), IEC |
| Wire Gauge | 24 AWG |
| Cable Insulation | PFA |
| Process Temperature Min | 0 |
| Process Temperature Unit | °C |
| Category | Thermocouple |
| Additional Feature | Batch Calibration Cert, none, Transition Junction |
| Termination Connection Type | Stripped Leads, Lead wire, Miniature Connector |
| Process Temperature Max | 720, 510, 820, 650, 730, 440, 520, 620, 920, 1070, 1150, 1038, 1204, 315, 260, 370 |
| Probe Length | 18 in, 12 in, 24 in, 3 in, 600 mm, 300 mm, 36 in, 6 in, 4 in, 38 in, 8 in, 30 in, 450 mm, 100 mm, 7 in, 150 mm |
| Probe Diameter | 0.250 in, 0.062 in, 0.125 in, 0.187 in, 1.50 mm, 3.00 mm, 4.50 mm, 6.00 mm, 1/4 in |
| Junction Type | Ungrounded, Exposed, Grounded |
| Sheath Material | Inconel® 600, 304 Stainless Steel, 316 Stainless Steel, Super OMEGACLADâ„¢ XL |
| Sensor Application | Immersion Probe, Air Probe |
| Process Temperature Range | 0 to 720°C (32 to 1300°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 440°C (32 to 825°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 1150°C (32 to 2100°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 315°C (32 to 600°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F) |
| Cable Length | 40 in |
