Sale!

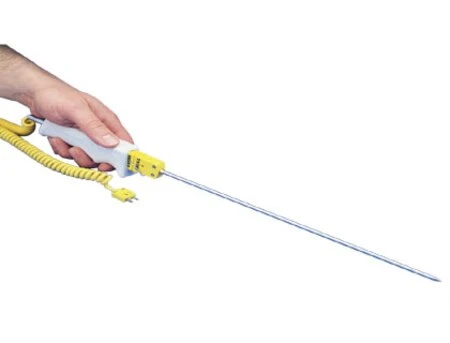

Thermocouple Probes With Mating Connector And Hardware

Original price was: $138.61.Current price is: $97.99.

Perfect for Handheld Thermocouple Meters
Thermocouple Types: J, K, T, or E
12′ Probe Length Standard. Other Lengths Available.
Quick Disconnect Probes Supplied with Mating Connector and Cable Clamp

Thermocouple Type

Process Temperature Range

Sensor Application

Junction Type

Probe Diameter

Probe Length

Connector Color Code Standard

Clear

SKU: QD-AP-E-316E-12 Categories: Handheld Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Thermocouple Probes With Mating Connector And Hardware -Omega Engineering Sales Store QD PROBES handles

Thermocouple Probes With Mating Connector And Hardware -Omega Engineering Sales Store qd probes heads

Penetration Probe
Conical tip for insertion into soft and semi-frozen material. Made from 4.5mm (3/16″) O.D. 304 SS. 300 mm (12″) length, grounded junction. Tip rated to 900°C (1650°F).

Fast Response Probe
Special reduced diameter 1.5 mm (1/16″) tip designed for fast response. Rugged 3 mm (1/8″) O.D. 304 SS sheath. 300 mm 12″) length, grounded junction. Tip rated to 900°C (1650°F).

Flexible Tip Surface Probe
Flexible tip conforms to most surfaces for fast, repeatable, accurate measurements. Made from RTV silicone rubber for good thermal contact. 6 mm (1/4″) O.D. 304SS sheath. 300 mm 12″) length, exposed junction. Tip rated to 260°C (500°F). Note: subjecting sensor tip to temperatures above 315°C 600°F) will result in tip damage.

Air Probe
Exposed element protected by 4.5 mm (3/16″) O.D. 304 sheath. Drilled end exposes bead to airflow for fast measurements. Constant diameter for easy insertion or mounting into duct work. 300 mm (12″) length, exposed junction. Rated to 870°C (1600°F).

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	E, J, K, T, N
Process Temperature Range	0 to 730°C (32 to 1350°F), 0 to 620°C (32 to 1150°F), 0 to 1150°C (32 to 2100°F), 0 to 370°C (32 to 700°F), 0 to 820°C (32 to 1510°F), 0 to 720°C (32 to 1300°F), 0 to 650°C (32 to 1200°F), 0 to 520°C (32 to 970°F), 0 to 1070°C (32 to 1960°F), 0 to 315°C (32 to 600°F)
Sensor Application	Air Probe, Penetration Probe, Immersion Probe
Junction Type	Exposed, Grounded, Ungrounded
Probe Diameter	0.187 in, 0.250 in, 0.125 in, 1/8 in
Probe Length	12 in, 3 in, 18 in, 24 in, 6 in, 4 in, 36 in, 48 in
Connector Color Code Standard	ANSI (Standard), Immersion Probe
Sensor Type	Thermocouple
Sheath Material	304 Stainless Steel
Connector Style	Standard Connector
