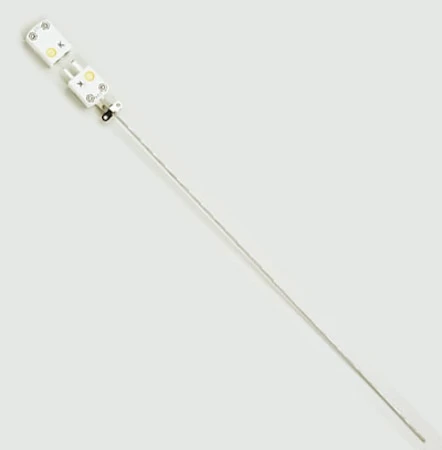

Thermocouple Probes With Miniature Ceramic Connectors

Original price was: $104.11.Current price is: $72.88.

SHX Mini Size Male Flat Pin Ceramic Connector Plug Rated to 650°C (1200°F)
Available in J, K, N,T, and E Thermocuple Types
Super OMEGACLAD XL Sheath for Probe Temperatures to 1335°C (2440°F) available for K or N Calibrations
Select Super OMEGACLAD XL Sheath for Low Drift Performance

Thermocouple Type

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Connector Style

Connector Color Code Standard

Clear

SKU: SCASS-IM025E-150-SHX Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Probes with Flat Pin Male Miniature Size Connectors

Alloy/ANSI Color Code	Sheath Dia. inches	Model Number Grounded Junction	Model Number Ungrounded Junction	Model Number Exposed Junction
J Iron- Constantan 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″ 0.125″	SICSS-010G-6-SHX SICSS-020G-6-SHX SICSS-032G-6-SHX SICSS-040G-6-SHX SICSS-062G-6-SHX SICSS-125G-6-SHX	SICSS-010U-6-SHX SICSS-020U-6-SHX SICSS-032U-6-SHX SICSS-040U-6-SHX SICSS-062U-6-SHX SICSS-125U-6-SHX	SICSS-010E-6-SHX SICSS-020E-6-SHX SICSS-032E-6-SHX SICSS-040E-6-SHX SICSS-062E-6-SHX SICSS-125E-6-SHX
K CHROMEGA™ ALOMEGA™ 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″ 0.125″	SCASS-010G-6-SHX SCASS-020G-6-SHX SCASS-032G-6-SHX SCASS-040G-6-SHX SCASS-062G-6-SHX SCASS-125G-6-SHX	SCASS-010U-6-SHX SCASS-020U-6-SHX SCASS-032U-6-SHX SCASS-040U-6-SHX SCASS-062U-6-SHX SCASS-125U-6-SHX	SCASS-010E-6-SHX SCASS-020E-6-SHX SCASS-032E-6-SHX SCASS-040E-6-SHX SCASS-062E-6-SHX SCASS-125E-6-SHX
E CHROMEGA™ Constantan 304 SS Sheath	0.010″ 0.020″ 0.032″ 0.040″ 0.062″ 0.125″	SCXSS-010G-6-SHX SCXSS-020G-6-SHX SCXSS-032G-6-SHX SCXSS-040G-6-SHX SCXSS-062G-6-SHX SCXSS-125G-6-SHX	SCXSS-010U-6-SHX SCXSS-020U-6-SHX SCXSS-032U-6-SHX SCXSS-040U-6-SHX SCXSS-062U-6-SHX SCXSS-125U-6-SHX	SCXSS-010E-6-SHX SCXSS-020E-6-SHX SCXSS-032E-6-SHX SCXSS-040E-6-SHX SCXSS-062E-6-SHX SCXSS-125E-6-SHX
T Copper- Constantan 304 SS Sheath	0.020″ 0.032″ 0.040″ 0.062″ 0.125″	SCPSS-020G-6-SHX SCPSS-032G-6-SHX SCPSS-040G-6-SHX SCPSS-062G-6-SHX SCPSS-125G-6-SHX	SCPSS-020U-6-SHX SCPSS-032U-6-SHX SCPSS-040U-6-SHX SCPSS-062U-6-SHX SCPSS-125U-6-SHX	SCPSS-020E-6-SHX SCPSS-032E-6-SHX SCPSS-040E-6-SHX SCPSS-062E-6-SHX SCPSS-125E-6-SHX

Learn more about how to select a thermocouple.

Probes with High Temp Standard Size Connector Round Solid pins ICSS-116U-12-NHX
Probes with standard temperature connectors (*)MQSS series.

View the Thermocouple Accuracy and Color Code charts

Probes up to 48 inches in length are shipped “straight.” Probes over 48 inches are shipped “coiled”. If probe above 48 inches in length must ship straight, please add “-SST” to the end of the part number, and add $75.00 to the probe cost. Additional shipping fees from carrier may also apply for non-standard length packaging.

Thermocouple Type	K, T, E, J, N
Process Temperature Range	0 to 700°C (32 to 1290°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 1150°C (32 to 2100°F), 0 to 315°C (32 to 600°F), 0 to 260°C (32 to 500°F), 0 to 510°C (32 to 950°F), 0 to 650°C (32 to 1200°F), 0 to 300°C (32 to 570°F), 0 to 440°C (32 to 825°F), 0 to 520°C (32 to 970°F)
Sensor Application	Air Probe, Immersion Probe
Sheath Material	304 Stainless Steel, 316 Stainless Steel, 321 Stainless Steel, Inconel® 600, Super OMEGACLAD™ XL, PFA Coated
Junction Type	Exposed, Grounded, Ungrounded
Probe Diameter	0.25 mm, 0.062 in, 0.125 in, 1.00 mm, 0.032 in, 0.040 in, 0.010 in, 0.020 in, 0.50 mm, 0.75 mm, 1.50 mm, 3.00 mm, 2.00 mm
Probe Length	150 mm, 36 in, 12 in, 6 in, 18 in, 3 in, 60 in, 24 in, 48 in, 72 in, 120 in, 4 in, 8 in, 300 mm, 600 mm, 10 in, 100 mm, 1200 mm, 1500 mm, 1800 mm, 75 mm, 450 mm, 16 in, 200 mm
Connector Style	Ceramic Miniature Connector, Dual Ceramic Miniature Connector, Ceramic Miniature Connector, ROHS Compliant, Ceramic Unglazed Miniature Connector, Miniature Connector
Connector Color Code Standard	IEC, ANSI (Standard), Immersion Probe
Sensor Type	Thermocouple
