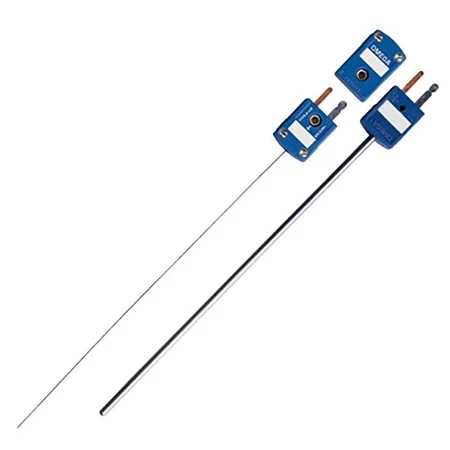

Thermocouple Probes With Molded Miniature Connectors

Original price was: $52.07.Current price is: $36.45.

6′ and 12′ Lengths in StocK
Sheath Diameters from 0.010′ to 0.125′
304SS or 321SS Sheath
Grounded, Ungrounded or Exposed Junction

Thermocouple Type

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Connector Color Code Standard

Additional Feature

Clear

SKU: KMQSS-IM150G-150 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s Quick Disconnect Thermocouples with Miniature Connectors are high quality, economical thermocouple probes. They feature a glass filled nylon connector which is rated for temperatures up to 220°C(425°F). The probes are available in with diameters as small as 0.25mm(0.010 inches) and as large as to 3.0mm(0.125 inches).

Thermocouple Probes With Molded Miniature Connectors -Omega Engineering Sales Store jmqss updated

Standard Dimensions – Mini Quick Disconnect Probes

Alloy/ANSI Color Code	Sheath Dia. inches	Model No. 6″ Length	Model No. 12″ Length
J Iron-Constantan 304 SS Sheath	0.010 0.020 0.032 0.040 0.062 0.125	SICSS-010()-6 SICSS-020()-6 SICSS-032()-6 JMQSS-040()-6 JMQSS-062()-6 JMQSS-125()-6	SICSS-010()-12 SICSS-020()-12 SICSS-032()-12 JMQSS-040()-12 JMQSS-062()-12 JMQSS-125()-12
K CHROMEGA™-ALOMEGA™ 304 SS Sheath	0.010 0.020 0.032 0.040 0.062 0.125	SCASS-010()-6 SCASS-020()-6 SCASS-032()-6 KMQSS-040()-6 KMQSS-062()-6 KMQSS-125()-6	SCASS-010()-10 SCASS-020()-12 SCASS-032()-12 KMQSS-040()-12 KMQSS-062()-12 KMQSS-125()-12
K CHROMEGA™-ALOMEGA™ Super OMEGACLAD™ XL Sheath Sheath	0.010 0.020 0.032 0.040 0.062 0.125	SCAXL-010()-6 SCAXL-020()-6 SCAXL-032()-6 KMQXL-040()-6 KMQXL-062()-6 KMQXL-125()-6	SCAXL-010()-10 SCAXL-020()-12 SCAXL-032()-12 KMQXL-040()-12 KMQXL-062()-12 KMQXL-125()-12
N OMEGA-P™-OMEGA-N™ Super OMEGACLAD™ XL Sheath	0.020 0.032 0.040 0.062 0.125	SNNXL-020()-6 SNNXL-032()-6 NMQXL-040()-6 NMQXL-062()-6 NMQXL-125(*)-6	SNNXL-020()-12 SNNXL-032()-12 NMQXL-040()-12 NMQXL-062()-12 NMQXL-125(*)-12
E CHROMEGA™-Constantan 304 SS Sheath	0.010 0.020 0.032 0.040 0.062 0.125	SCXSS-010()-6 SCXSS-020()-6 SCXSS-032()-6 EMQSS-040()-6 EMQSS-062()-6 EMQSS-125()-6	SCXSS-010()-12 SCXSS-020()-12 SCXSS-032()-12 EMQSS-040()-12 EMQSS-062()-12 EMQSS-125()-12
T Copper-Constantan 304 SS Sheath	0.020 0.032 0.040 0.062 0.125	SCPSS-020()-6 SCPSS-032()-6 TMQSS-040()-6 TMQSS-062()-6 TMQSS-125(*)-6	SCPSS-020()-12 SCPSS-032()-12 TMQSS-040()-12 TMQSS-062()-12 TMQSS-125(*)-12
N OMEGALLOY™ Inconel 600 Sheath	0.010 0.020 0.032 0.040 0.062 0.125	SNNIN-010()-6 SNNIN-020()-6 SNNIN-032()-6 NMQIN-040()-6 NMQIN-062()-6 NMQIN-125()-6	SNNIN-010()-12 SNNIN-020()-12 SNNIN-032()-12 NMQIN-040()-12 NMQIN-062()-12 NMQIN-125()-12

*Specify junction type: E (exposed), G (grounded) or U (ungrounded). †Other lengths available, consult Sales Department. To order with Inconel Sheath, Change “SS” in model no. to “IN”. No additional charge.

Want to learn more about thermocouples? Read our thermocouple tutorial page!

Learn about selecting the thermocouple junction.

View the Thermocouple Accuracy and Color Code charts

Probes up to 48 inches in length are shipped “straight.” Probes over 48 inches are shipped “coiled”. If probe above 48 inches in length must ship straight, please add “-SST” to the end of the part number, and add $75.00 to the probe cost. Additional shipping fees from carrier may also apply for non-standard length packaging.

Thermocouple Type	K, E, J, N, T
Process Temperature Range	0 to 920°C (32 to 1690°F), 0 to 300°C (32 to 570°F), 0 to 510°C (32 to 950°F), 0 to 650°C (32 to 1200°F), 0 to 520°C (32 to 970°F), 0 to 260°C (32 to 500°F), 0 to 440°C (32 to 825°F), 0 to 700°C (32 to 1290°F), 0 to 1070°C (32 to 1960°F), 0 to 800°C (32 to 1472°F), 0 to 1038°C (32 to 1900°F), 0 to 1150°C (32 to 2100°F), 0 to 315°C (32 to 600°F)
Sensor Application	Immersion Probe, Air Probe, Penetration Probe
Sheath Material	304 Stainless Steel, Inconel® 600, 316 Stainless Steel, 310 Stainless Steel, 321 Stainless Steel, Super OMEGACLAD™ XL
Junction Type	Grounded, Ungrounded, Exposed
Probe Diameter	1.50 mm, 0.040 in, 0.062 in, 0.125 in, 3.00 mm, 1.5 mm, 3.0 mm, 6.0 mm, 1.00 mm, 3/64 in, 0.050 mm, 0.30 mm, 3 mm
Probe Length	150 mm, 6 in, 12 in, 18 in, 24 in, 60 in, 3 in, 36 in, 300 mm, 4 in, 8 in, 48 in, 2.25 in, 450 mm, 600 mm, 2 in, 72 in, 100 mm, 2.5 in, 288 in, 96 in, 120 in, 9 in, 200 mm, 900 mm
Connector Color Code Standard	IEC, ANSI (Standard)
Additional Feature	None, With Batch Calibration Cert (CAL-5), Immersion Probe, none, IEC Color Code, Penetrtion Pump, ROHS Compliants
Sensor Type	Thermocouple
Connector Style	Miniature Connector
