Thermocouple Probes With PFA Insulated Lead Wire
Original price was: $62.91.$44.04Current price is: $44.04.
- Transition and Wire Rated to 260°C (500°F)
- Available in 304, 310, 316 & 321 SS or Inconel Sheath
- Also Available in Super OMEGACLAD™ XL for Stable, Long-Term Operation at High Temperatures
- Diameters from 1/16 to 1/4 ‘
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

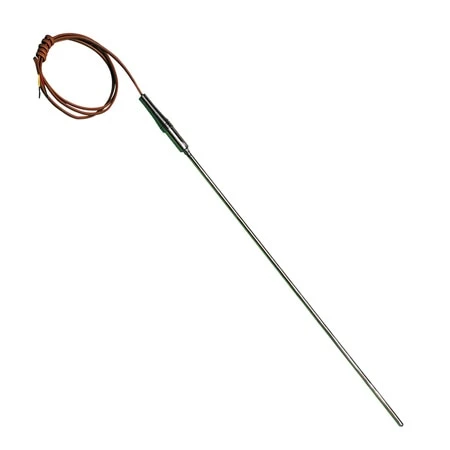

The TJ36 Series of thermocouple probes offers Heavy Duty Transition Joint Probes in convenient termination to PFA coated lead wire. Refer chart to get Probe Diameter (A), Transition junction diameter (B) & Spring length (C) & Length of Transition junction and Strain relief (D)
Probes under 48 inches in length are shipped “straight”. Probes 48 inches or longer are shipped “coiled”. If probe above 48 inches in length must ship straight, please add “-SST” to the end of the part number, and add $75.00 to the probe cost. Maximum ship straight length is 96 inches. Additional shipping fees from carrier may also apply for non-standard length packaging.
| Alloy/ANSI Color Code | Sheath Dia. (“) | Model No. 12″ Length | Model No. 18″ Length | Model No. 24″ Length |
| J Iron-Constantan Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-ICIN-116(*)-12 TJ36-ICIN-18(*)-12 TJ36-ICIN-316(*)-12 TJ36-ICIN-14(*)-12 | TJ36-ICIN-116(*)-18 TJ36-ICIN-18(*)-18 TJ36-ICIN-316(*)-18 TJ36-ICIN-14(*)-18 | TJ36-ICIN-116(*)-24 TJ36-ICIN-18(*)-24 TJ36-ICIN-316(*)-24 TJ36-ICIN-14(*)-24 |
| J Iron-Constantan 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-ICSS-116(*)-12 TJ36-ICSS-18(*)-12 TJ36-ICSS-316(*)-12 TJ36-ICSS-14(*)-12 | TJ36-ICSS-116(*)-18 TJ36-ICSS-18(*)-18 TJ36-ICSS-316(*)-18 TJ36-ICSS-14(*)-18 | TJ36-ICSS-116(*)-24 TJ36-ICSS-18(*)-24 TJ36-ICSS-316(*)-24 TJ36-ICSS-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-CAIN-116(*)-12 TJ36-CAIN-18(*)-12 TJ36-CAIN-316(*)-12 TJ36-CAIN-14(*)-12 | TJ36-CAIN-116(*)-18 TJ36-CAIN-18(*)-18 TJ36-CAIN-316(*)-18 TJ36-CAIN-14(*)-18 | TJ36-CAIN-116(*)-24 TJ36-CAIN-18(*)-24 TJ36-CAIN-316(*)-24 TJ36-CAIN-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-CASS-116(*)-12 TJ36-CASS-18(*)-12 TJ36-CASS-316(*)-12 TJ36-CASS-14(*)-12 | TJ36-CASS-116(*)-18 TJ36-CASS-18(*)-18 TJ36-CASS-316(*)-18 TJ36-CASS-14(*)-18 | TJ36-CASS-116(*)-24 TJ36-CASS-18(*)-24 TJ36-CASS-316(*)-24 TJ36-CASS-14(*)-24 |
| E CHROMEGA™-Constantan Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-CXIN-116(*)-12 TJ36-CXIN-18(*)-12 TJ36-CXIN-316(*)-12 TJ36-CXIN-14(*)-12 | TJ36-CXIN-116(*)-18 TJ36-CXIN-18(*)-18 TJ36-CXIN-316(*)-18 TJ36-CXIN-14(*)-18 | TJ36-CXIN-116(*)-24 TJ36-CXIN-18(*)-24 TJ36-CXIN-316(*)-24 TJ36-CXIN-14(*)-24 |
| E CHROMEGA™-Constantan 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-CXSS-116(*)-12 TJ36-CXSS-18(*)-12 TJ36-CXSS-316(*)-12 TJ36-CXSS-14(*)-12 | TJ36-CXSS-116(*)-18 TJ36-CXSS-18(*)-18 TJ36-CXSS-316(*)-18 TJ36-CXSS-14(*)-18 | TJ36-CXSS-116(*)-24 TJ36-CXSS-18(*)-24 TJ36-CXSS-316(*)-24 TJ36-CXSS-14(*)-24 |
| T Copper-Constantan Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-CPIN-116(*)-12 TJ36-CPIN-18(*)-12 TJ36-CPIN-316(*)-12 TJ36-CPIN-14(*)-12 | TJ36-CPIN-116(*)-18 TJ36-CPIN-18(*)-18 TJ36-CPIN-316(*)-18 TJ36-CPIN-14(*)-18 | TJ36-CPIN-116(*)-24 TJ36-CPIN-18(*)-24 TJ36-CPIN-316(*)-24 TJ36-CPIN-14(*)-24 |
| T Copper-Constantan 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-CPSS-116(*)-12 TJ36-CPSS-18(*)-12 TJ36-CPSS-316(*)-12 TJ36-CPSS-14(*)-12 | TJ36-CPSS-116(*)-18 TJ36-CPSS-18(*)-18 TJ36-CPSS-316(*)-18 TJ36-CPSS-14(*)-18 | TJ36-CPSS-116(*)-24 TJ36-CPSS-18(*)-24 TJ36-CPSS-316(*)-24 TJ36-CPSS-14(*)-24 |
| N OMEGALLOY™ NICROSIL-NISIL ** Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | TJ36-NNIN-116(*)-12 TJ36-NNIN-18(*)-12 TJ36-NNIN-316(*)-12 TJ36-NNIN-14(*)-12 | TJ36-NNIN-116(*)-18 TJ36-NNIN-18(*)-18 TJ36-NNIN-316(*)-18 TJ36-NNIN-14(*)-18 | TJ36-NNIN-116(*)-24 TJ36-NNIN-18(*)-24 TJ36-NNIN-316(*)-24 TJ36-NNIN-14(*)-24 |
*Specify junction type: E (Exposed), G (Grounded) or U (Ungrounded). For lengths from 2″ to 12″, please consult Sales.
**For Super OMEGACLAD™ XL, change “IN” to “XL” and add $3 to price. Note: Super OMEGACLAD™ XL sheaths are available in Type K and N calibrations only.
View the Thermocouple Accuracy and Color Code Table
| Thermocouple Type | K, N, J, E, T |
|---|---|
| Wire Gauge | 24 AWG, 20 AWG, Not Applicable |
| Process Temperature Unit | °C |
| Category | Thermocouple |
| Additional Feature | none, Immersion Probe, With PDR-1, Dual Elements, High Temperature Wire, Batch Calibration Cert |
| Color Code Standard | ANSI (Standard), IEC |
| Termination Connection Type | Stripped Leads, Miniature Connector, OSTW-M Connector, Standard Connector, High Temp Miniature Connector, Ceramic Standard Connector, Lead wire, Standard Female Connector, Compensated spade lugs, Miniature Female Connector, Miniature Connector with Cable Clamp, 3-Prong Standard Connector, Miniature Connetor |
| Cable Length | 40 in, 0.3 m, 10 in, 120 in, 12 in, 1.2 m, 240 in, 144 in, 18 in, 192 in, 1 m, 42 in, 1 in, 200 in, 20 in, 22 in, 24 in, 25in, 276 in, 2 in, 300 in, 30 in, 48 in, 60 in, 6 in, 72 in, 80 in |
| Cable Insulation | PFA, PFA with Stainless Steel Overbraid, Fiberglass, PFA with Armored Cable, Nextel with Inconel Overbraid, Fiberglass with Stainless Steel Overbraid, Silica Ceramic with Inconel Overbraid, Fiberglass with Armored Cable, PFA with Tinned Copper Overbraid |
| Process Temperature Max | 1070, 920, 1150, 520, 700, 315, 1204, 800, 720, 1038, 260, 370, 510, 650, 440, 620, 200, 820, 730, 300 |
| Probe Length | 6 in, 600 mm, 2 in, 54 in, 9 in, 52 in, 53 in, 150 mm, 34 in, 36 in, 55 in, 96 in, 13 in, 10 in, 192 in, 22 in, 300 mm, 1500 mm, 200 mm, 450 mm, 100 mm, 1000 mm, 75 mm, 266 mm, 273 mm, 1200 mm, 1800 mm, 700 mm, 115 mm, 900 mm, 1100 mm, 4 in, 18 in, 14 in, 24 in, 3 in, 12 in, 48 in, 120 in, 60 in, 72 in, 8 in, 108 in, 20 in, 40 in, 1 in, 51 in, 118 in, 1.25 in, 110 mm, 15 in, 134 in, 86 in, 94 in |
| Probe Diameter | 0.125 in, 1.50 mm, 0.250 in, 0.062 in, 0.040 in, 0.187 in, 6.00 mm, 0.032 in, 3.00 mm, 0.75 mm, 1.00 mm, 2.00 mm, 4.50 mm, 0.25 mm, 0.50 mm, 8.00 mm, 0.020 in, 0.010 in, 0.375 in, 0.312 in |
| Junction Type | Ungrounded, Grounded, Exposed |
| Sheath Material | Inconel® 600, 304 Stainless Steel, Super OMEGACLADâ„¢ XL, 310 Stainless Steel, 316 Stainless Steel, 321 Stainless Steel, PFA Coated, Super OMEGACLAD™ XL, OSTW-M Connetor |
| Sensor Application | Immersion Probe, Air Probe, Penetration Probe |
| Process Temperature Range | 0 to 1070°C (32 to 1960°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 520°C (32 to 970°F), 0 to 700°C (32 to 1290°F), 0 to 730°C (32 to 1350°F), 0 to 315°C (32 to 600°F), 0 to 1204°C (32 to 2200°F), 0 to 800°C (32 to 1472°F), 0 to 720°C (32 to 1300°F), 0 to 1038°C (32 to 1900°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 510°C (32 to 950°F), 0 to 650°C (32 to 1200°F), 0 to 440°C (32 to 825°F), 0 to 620°C (32 to 1150°F), 0 to 200°C (32 to 392°F), 0 to 820°C (32 to 1510°F), 0 to 300°C (32 to 570°F) |
| Process Temperature Min | 0 |
