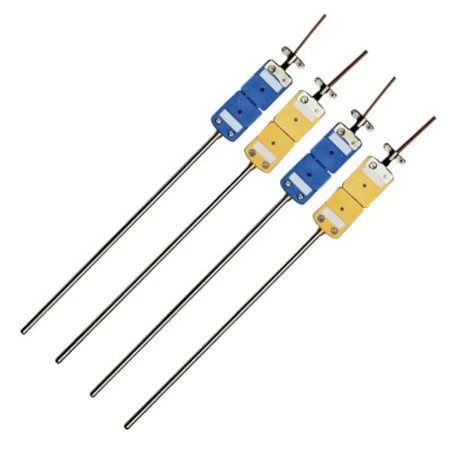

Thermocouple Probes With Removable Standard Size Connectors
Original price was: $73.07.$51.15Current price is: $51.15.
- Made with Special-Limits-of-Error Thermocouple Material
- Standard Size OSTW Male Probe Termination
- Probe Connector has ‘Write-On’ Label for Identificatrion
- Mating Connector with Cable Clamp sold separately
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
OMEGA™ Quick Disconnect Thermocouple Assemblies feature standard size OSTW thermocouple connectors, with probes from 1/16 to 1/4″. These probes are available with grounded, ungrounded or exposed junctions with either 304 SS or Inconel sheaths.
| Thermocouple Alloy | Sheath Dia. mm (in.) | Model No. 300 mm (12″) Length | Model No. 450 mm (18″) Length | Model No. 600 mm (24″) Length |
| J IRON-CONSTANTAN Inconel Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | ICIN-116(*)-12 ICIN-18(*)-12 ICIN-316(*)-12 ICIN-14(*)-12 | ICIN-116(*)-18 ICIN-18(*)-18 ICIN-316(*)-18 ICIN-14(*)-18 | ICIN-116(*)-24 ICIN-18(*)-24 ICIN-316(*)-24 ICIN-14(*)-24 |
| J IRON-CONSTANTAN 304 SS Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | ICSS-116(*)-12 ICSS-18(*)-12 ICSS-316(*)-12 ICSS-14(*)-12 | ICSS-116(*)-18 ICSS-18(*)-18 ICSS-316(*)-18 ICSS-14(*)-18 | ICSS-116(*)-24 ICSS-18(*)-24 ICSS-316(*)-24 ICSS-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ Inconel Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | CAIN-116(*)-12 CAIN-18(*)-12 CAIN-316(*)-12 CAIN-14(*)-12 | CAIN-116(*)-18 CAIN-18(*)-18 CAIN-316(*)-18 CAIN-14(*)-18 | CAIN-116(*)-24 CAIN-18(*)-24 CAIN-316(*)-24 CAIN-14(*)-24 |
| K CHROMEGA™-ALOMEGA™ 304 SS Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | CASS-116(*)-12 CASS-18(*)-12 CASS-316(*)-12 CASS-14(*)-12 | CASS-116(*)-18 CASS-18(*)-18 CASS-316(*)-18 CASS-14(*)-18 | CASS-116(*)-24 CASS-18(*)-24 CASS-316(*)-24 CASS-14(*)-24 |
| E CHROMEGA™-CONSTANTAN Inconel Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | CXIN-116(*)-12 CXIN-18(*)-12 CXIN-316(*)-12 CXIN-14(*)-12 | CXIN-116(*)-18 CXIN-18(*)-18 CXIN-316(*)-18 CXIN-14(*)-18 | CXIN-116(*)-24 CXIN-18(*)-24 CXIN-316(*)-24 CXIN-14(*)-24 |
| E CHROMEGA™-CONSTANTAN 304 SS Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | CXSS-116(*)-12 CXSS-18(*)-12 CXSS-316(*)-12 CXSS-14(*)-12 | CXSS-116(*)-18 CXSS-18(*)-18 CXSS-316(*)-18 CXSS-14(*)-18 | CXSS-116(*)-24 CXSS-18(*)-24 CXSS-316(*)-24 CXSS-14(*)-24 |
| T COPPER-CONSTANTAN Inconel Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | CPIN-116(*)-12 CPIN-18(*)-12 CPIN-316(*)-12 CPIN-14(*)-12 | CPIN-116(*)-18 CPIN-18(*)-18 CPIN-316(*)-18 CPIN-14(*)-18 | CPIN-116(*)-24 CPIN-18(*)-24 CPIN-316(*)-24 CPIN-14(*)-24 |
| T COPPER-CONSTANTAN 304 SS Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | CPSS-116(*)-12 CPSS-18(*)-12 CPSS-316(*)-12 CPSS-14(*)-12 | CPSS-116(*)-18 CPSS-18(*)-18 CPSS-316(*)-18 CPSS-14(*)-18 | CPSS-116(*)-24 CPSS-18(*)-24 CPSS-316(*)-24 CPSS-14(*)-24 |
| N OMEGALLOY™-NICROSIL-NISIL** Inconel Sheath | 1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″) | NNIN-116(*)-12 NNIN-18(*)-12 NNIN-316(*)-12 NNIN-14(*)-12 | NNIN-116(*)-18 NNIN-18(*)-18 NNIN-316(*)-18 NNIN-14(*)-18 | NNIN-116(*)-24 NNIN-18(*)-24 NNIN-316(*)-24 NNIN-14(*)-24 |
*Specify junction type: E (Exposed), G (Grounded) or U (Ungrounded).
To order with 310, 316 or 321 Stainless Steel Sheath, change “SS” in Model No. to “310SS”, “316SS” or “321SS” respectively, no add’l charge.
**To order Super OMEGACLAD™ XL, change “IN” to “XL” and add $3.
Read this article if you need help in selecting the thermocouple junction
View the Thermocouple Accuracy and Color Code charts
Probes up to 48 inches in length are shipped “straight.” Probes over 48 inches are shipped “coiled”. If probe above 48 inches in length must ship straight, please add “-SST” to the end of the part number, and add $75.00 to the probe cost. Additional shipping fees from carrier may also apply for non-standard length packaging.
| Thermocouple Type | K, T, E, J, N |
|---|---|
| Process Temperature Range | 0 to 1150°C (32 to 2100°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 200°C (32 to 400°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 260°C (32 to 500°F), 0 to 315°C (32 to 600°F), 0 to 370°C (32 to 700°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F) |
| Sensor Application | Immersion Probe, Air Probe |
| Sheath Material | Super OMEGACLAD™ XL, 310 Stainless Steel, 316 Stainless Steel, Inconel® 600, 304 Stainless Steel, PFA Coated |
| Junction Type | Ungrounded, Grounded, Exposed |
| Probe Diameter | 0.125 in, 0.250 in, 0.062 in, 1/4 in, 0.187 in, 1.50 mm, 3.00 mm, 6.00 mm, 1.5 mm, 4.50 mm |
| Probe Length | 24 in, 12 in, 18 in, 6 in, 4 in, 8 in, 3 in, 36 in, 48 in, 60 in, 72 in, 120 in, 450 mm, 300 mm, 600 mm, 3000 mm, 150 mm, 200 mm, 7 in, 5.375 in, 1500 mm, 54 in |
| Connector Style | Standard Connector, Ceramic Standard Connector, Ceramic Standard Connector Unglazed, HSTW-M Connector, Dual Standard Connector |
| Connector Color Code Standard | ANSI (Standard), IEC |
| Additional Feature | None, Ship Straight, Immersion Probe, Replacement Probe, With Batch Calibration Cert (CAL-5) |
| Sensor Type | Thermocouple |
