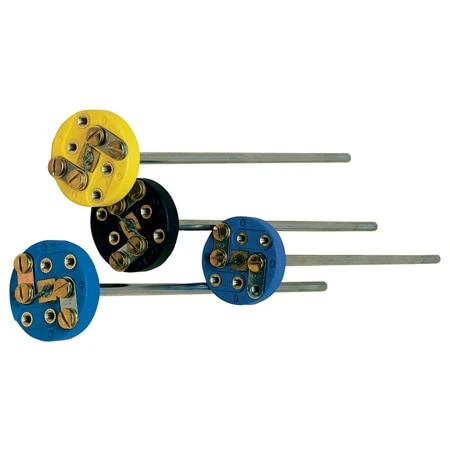

Thermocouple Probes With Round Terminal Blocks

Original price was: $60.67.Current price is: $42.47.

304, 310, 316, 321SS, Inconel or Super OMEGACLAD™ XL Sheath
Color-Coded Terminal Block
Single Element Design Standard
Quick Hook-up Design

Thermocouple Type

Process Temperature Max

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Clear

SKU: TB-CXSS-316U-12 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Probes can be used for direct immersion, or can be mounted with an OMEGALOK™ compression fitting.

Thermocouple Alloy	Sheath Dia mm(in.)	Model Number 300mm(12in) Length	Model Number 600mm(24in) Length	Model Number 900mm(36in) Length
J Thermocouple Inconel Sheath	1.5 (1/16″)	TB-ICIN-116(*)-12	TB-ICIN-116(*)-24	TB-ICIN-116(*)-36
	3.0 (1/8″)	TB-ICIN-18(*)-12	TB-ICIN-18(*)-24	TB-ICIN-18(*)-36
	4.5 (3/16″)	TB-ICIN-316(*)-12	TB-ICIN-316(*)-24	TB-ICIN-316(*)-36
	6.0 (1/4″)	TB-ICIN-14(*)-12	TB-ICIN-14(*)-24	TB-ICIN-14(*)-36
J Thermocouple 304SS Sheath	1.5 (1/16″)	TB-ICSS-116(*)-12	TB-ICSS-116(*)-24	TB-ICSS-116(*)-36
	3.0 (1/8″)	TB-ICSS-18(*)-12	TB-ICSS-18(*)-24	TB-ICSS-18(*)-36
	4.5 (3/16″)	TB-ICSS-316(*)-12	TB-ICSS-316(*)-24	TB-ICSS-316(*)-36
	6.0 (1/4″)	TB-ICSS-14(*)-12	TB-ICSS-14(*)-24	TB-ICSS-14(*)-36
K Thermocouple Inconel Sheath	1.5 (1/16″)	TB-CAIN-116(*)-12	TB-CAIN-116(*)-24	TB-CAIN-116(*)-36
	3.0 (1/8″)	TB-CAIN-18(*)-12	TB-CAIN-18(*)-24	TB-CAIN-18(*)-36
	4.5 (3/16″)	TB-CAIN-316(*)-12	TB-CAIN-316(*)-24	TB-CAIN-316(*)-36
	6.0 (1/4″)	TB-CAIN-14(*)-12	TB-CAIN-14(*)-24	TB-CAIN-14(*)-36
K Thermocouple 304SS Sheath	1.5 (1/16″)	TB-CASS-116(*)-12	TB-CASS-116(*)-24	TB-CASS-116(*)-36
	3.0 (1/8″)	TB-CASS-18(*)-12	TB-CASS-18(*)-24	TB-CASS-18(*)-36
	4.5 (3/16″)	TB-CASS-316(*)-12	TB-CASS-316(*)-24	TB-CASS-316(*)-36
	6.0 (1/4″)	TB-CASS-14(*)-12	TB-CASS-14(*)-24	TB-CASS-14(*)-36
E Thermocouple Inconel Sheath	1.5 (1/16″)	TB-CXIN-116(*)-12	TB-CXIN-116(*)-24	TB-CXIN-116(*)-36
	3.0 (1/8″)	TB-CXIN-18(*)-12	TB-CXIN-18(*)-24	TB-CXIN-18(*)-36
	4.5 (3/16″)	TB-CXIN-316(*)-12	TB-CXIN-316(*)-24	TB-CXIN-316(*)-36
	6.0 (1/4″)	TB-CXIN-14(*)-12	TB-CXIN-14(*)-24	TB-CXIN-14(*)-36
E Thermocouple 304SS Sheath	1.5 (1/16″)	TB-CXSS-116(*)-12	TB-CXSS-116(*)-24	TB-CXSS-116(*)-36
	3.0 (1/8″)	TB-CXSS-18(*)-12	TB-CXSS-18(*)-24	TB-CXSS-18(*)-36
	4.5 (3/16″)	TB-CXSS-316(*)-12	TB-CXSS-316(*)-24	TB-CXSS-316(*)-36
	6.0 (1/4″)	TB-CXSS-14(*)-12	TB-CXSS-14(*)-24	TB-CXSS-14(*)-36
T Thermocouple Inconel Sheath	1.5 (1/16″)	TB-CPIN-116(*)-12	TB-CPIN-116(*)-24	TB-CPIN-116(*)-36
	3.0 (1/8″)	TB-CPIN-18(*)-12	TB-CPIN-18(*)-24	TB-CPIN-18(*)-36
	4.5 (3/16″)	TB-CPIN-316(*)-12	TB-CPIN-316(*)-24	TB-CPIN-316(*)-36
	6.0 (1/4″)	TB-CPIN-14(*)-12	TB-CPIN-14(*)-24	TB-CPIN-14(*)-36
T Thermocouple 304SS Sheath	1.5 (1/16″)	TB-CPSS-116(*)-12	TB-CPSS-116(*)-24	TB-CPSS-116(*)-36
	3.0 (1/8″)	TB-CPSS-18(*)-12	TB-CPSS-18(*)-24	TB-CPSS-18(*)-36
	4.5 (3/16″)	TB-CPSS-316(*)-12	TB-CPSS-316(*)-24	TB-CPSS-316(*)-36
	6.0 (1/4″)	TB-CPSS-14(*)-12	TB-CPSS-14(*)-24	TB-CPSS-14(*)-36

* Specify junction type: E (exposed), G (grounded) or U (ungrounded).

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	E, K, T, J
Process Temperature Max	730, 920, 1150, 1070, 1204, 260, 370, 315, 820, 650, 510, 440, 720, 520, 620
Process Temperature Range	0 to 730°C (32 to 1350°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 1204°C (32 to 2200°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 510°C (32 to 950°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F)
Sensor Application	Immersion Probe, Air Probe
Sheath Material	304 Stainless Steel, Inconel® 600, Super OMEGACLADâ„¢ XL
Junction Type	Ungrounded, Exposed, Grounded
Probe Diameter	0.187 in, 0.062 in, 0.25 in, 0.125 in, 1/8 in
Probe Length	12 in, 24 in, 36 in, Immersion Probe, 6 in
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Accuracy	Yes
