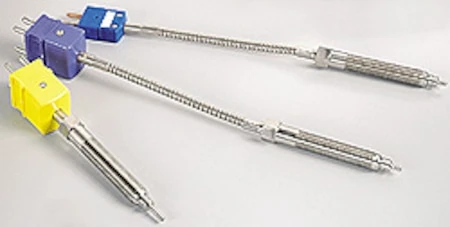

Thermocouple Probes With SS Tips For Plastic Extruders

Original price was: $92.91.Current price is: $65.04.

Service Temperatures to 900°F
Single or Dual Element Probes with Quick-Disconnect Termination
Rigid Plug or Flexible Extension Models
316 Stainless Steel Tips

Thermocouple Type

Process Temperature Max

Process Temperature Range

Junction Type

Probe Length

Cable Insulation

Cable Length

Termination Connection Type

Additional Feature

Clear

SKU: SERP-T-1 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s Heavy Duty, Plastic Processing Thermocouples mount directly in extruder heads or die adapters of injection molding machines with sensor tip projected directly into the plastic melt.

Immersion lengths, styles and mounting arrangements are available in a wide range of possible configurations. All thermocouples are constructed of Type 316 Stainless Steel.

Please review Spec Sheet for all available versions

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	T, E, J, K
Process Temperature Max	315, 650, 520, 1070
Process Temperature Range	0 to 315°C (32 to 600°F), 0 to 650°C (32 to 1200°F), 0 to 520°C (32 to 970°F), 0 to 1070°C (32 to 1960°F)
Junction Type	Grounded, Ungrounded
Probe Length	Flush, 0.25 in, 1 in, 0.5 in, 0.75 in
Cable Insulation	Not Applicable, Fiberglass with Armored Cable
Cable Length	Not Applicable, 6 in
Termination Connection Type	Standard Connector, Dual Standard Connectors
Additional Feature	3" Body Length, 6" Body Length
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sensor Application	Immersion Probe
Process Connection Size	1/2-20 N.F.
Sheath Material	316 Stainless Steel
Probe Diameter	0.125 in
