Sale!

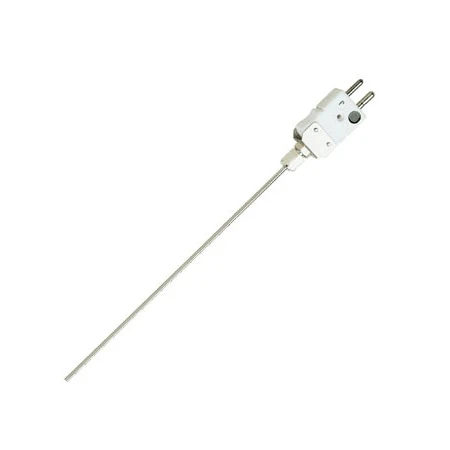

Thermocouple Probes With Standard Size Ceramic Connectors

Original price was: $83.51.Current price is: $58.46.

NHX Solid Round Pin Male Connector Plug and Tube Clamp included
NHX Standard Size Ceramic Connector Rated to 650°C (1200°F )
Super OMEGACLAD XL Sheath Probes for Temperatures to 1335 °C ( 2440°F )available for K or N Calibrations
Super OMEGACLAD XL Sheath for Low Drift Performance

Thermocouple Type

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Connector Style

Connector Color Code Standard

Clear

SKU: CAIN-14G-6-NHX Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

High Temperature Thermocouple Probes with SHX Miniature Size Connector with flat pins:
SICSS-062U-6-SHX

View the Thermocouple Accuracy and Color Code charts

Probes up to 48 inches in length are shipped “straight.” Probes over 48 inches are shipped “coiled”. If probe above 48 inches in length must ship straight, please add “-SST” to the end of the part number, and add $75.00 to the probe cost. Additional shipping fees from carrier may also apply for non-standard length packaging.

Thermocouple Type	K, T, E, J, N
Process Temperature Range	0 to 1150°C (32 to 2100°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 620°C (32 to 1150°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F)
Sensor Application	Immersion Probe, Air Probe
Sheath Material	Inconel® 600, 316 Stainless Steel, 304 Stainless Steel, Super OMEGACLAD™ XL
Junction Type	Grounded, Ungrounded, Exposed
Probe Diameter	0.250 in, 0.062 in, 0.125 in, 0.187 in, 1.50 mm, 3.00 mm, 6.00 mm
Probe Length	6 in, 48 in, 12 in, 18 in, 120 in, 24 in, 36 in, 72 in, 8 in, 60 in, 3 in, 4 in, 450 mm, 100 mm, 1200 mm, 300 mm, 600 mm, 900 mm, 40 in, 3000 mm, 150 mm, 1500 mm, 10 in, 138 in
Connector Style	Ceramic Standard Connector, Dual Ceramic Standard Connector
Connector Color Code Standard	ANSI (Standard), IEC
Sensor Type	Thermocouple
