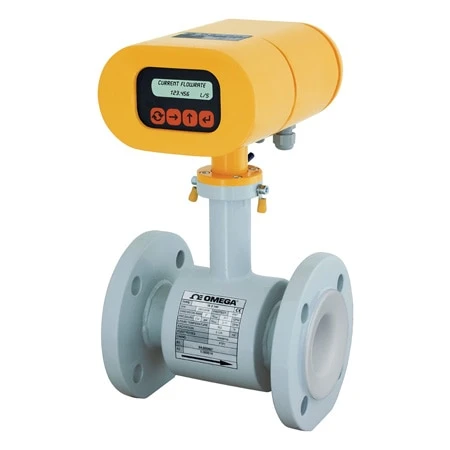

Tri-Clamp Or ANSI Flanged Electromagnetic Flow Meters

Original price was: $370.00.Current price is: $96.99.

Virtually No Pressure Loss
No Moving Parts
ANSI 150# Flanges or Tri-Clover Sanitary Mount
RS485 Standard

Flow Range

Max Process Temperature

Supply Power

Display

Process Connection Type

Process Connection Size

Features

Clear

SKU: FMG604 Categories: Electromagnetic Flow Meters, Flow Instruments, Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FMG600 Series electromagnetic flow meters are designed for measurement of conductive liquids. The FMG600 magmeters have no moving parts and a PTFE lining, they can handle applications involving wastewater, pulp, food, and slurries. Standard outputs include analog, frequency, and RS485 communications. Optional sanitary tri-clamp mounting allows use of the FMG600 flow meters in applications not previously open to magmeters. Local- and remote-display models are available.

NOTE: HEAVY WEIGHT – NO UPS – MOTOR FREIGHT ONLY!!! OVERWEIGHT SHIPPING CHARGES WILL APPLY FOR THIS PRODUCT. IF ORDERED ON-LINE INTERNET SALES WILL CONTACT YOU AFTER ORDER PLACEMENT UNLESS YOU OPT TO CHARGE FREIGHT TO YOUR CARRIER ACCOUNT.

SPECIFICATIONS
Flange Sizes:
150# ANSI: 19 to 305 mm (¾ to 12″)
Sanitary Tri-Clamp: 13 to 305 mm (½ to 12″)
Maximum Pressure: 145 psi
Minimum Conductivity: 20 µS
Electrode Material: Hastelloy C4 (standard), tantalum (TGE optional)
Environmental Temperature: -5 to 55°C (23 to 131°F)
Sensor Lining: PTFE
Electronics Housing: Local or remote (optional)
Liquid Temperature: 0 to 50°C (32 to 122°F) STD, 0 to 150°C (32 to 302°F) with remote electronics
Empty Pipe Alarm: 2″ and larger sizes (EPD optional)
Accuracy: ±0.5% from 5 to 100% Qs, ±1% from 1 to 5% Qs
Range: 0.1 to 10 m/s (0.328 to 32.81 fps)
Outputs: Adjustable from 0.1 to 1000 gallons/pulse
Current: 4 to 20 mA with galvanic isolation
Frequency: 0 to 1000 Hz with galvanic isolation
Communications: RS485
Power: 24 Vdc, 115/230 Vac switchable (optional)
Consumption: 15 VA
Protection: IP67 Storage Temperature and Humidity: -10 to 70°C (14 to 158°F) at max; relative humidity 70%

Flow Range	13.2 to 132 GPM, 1.1 to 11 GPM, 5.2 to 52 GPM, 3.1 to 31 GPM, 7.9 to 79 GPM, 6.1 to 61 GPM, 9.6 to 96 GPM, 19.8 to 198 GPM, 15.1 to 151 GPM, 31.7 to 317 GPM, 28.1 to 281 GPM, 52.8 to 528 GPM, 45.1 to 451 GPM, 79.3 to 793 GPM, 123.3 to 1,233 GPM, 189.3 to 1,893 GPM, 286.2 to 2,862 GPM, 506.3 to 5,063 GPM, 792.5 to 7,925 GPM, 1,110 to 11,100 GPM
Max Process Temperature	50 °C (122 °F), 150 °C (302 °F)
Supply Power	24 Vdc, 24 Vac, 110 to 230 Vac
Display	LCD, Remote Display
Process Connection Type	ANSI Flange, Tri-Clamp
Process Connection Size	1 1/4", 1/2", 3/4", 1", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"
Features	NIST Calibration, Not Applicable
Category	Meter
Accuracy	±0.5%
Max Operating Pressure	145 psi
Wetted Materials	Hastelloy, PTFE
Media Type	Conductive Fluids
Output Signal	4 to 20 mA, Amplified Square Wave
Communication Protocol	RS485
