Turbine Flow Meter For Water Totalization
Original price was: $169.71.$98.99Current price is: $98.99.
- For Water Flows from 0.15 to 2600 GPM
- Scaled Pulse Output Available for Remote Totalization Indication
- For Hot or Cold Water Applications
- Up to ±1.5% of Reading Accuracy
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

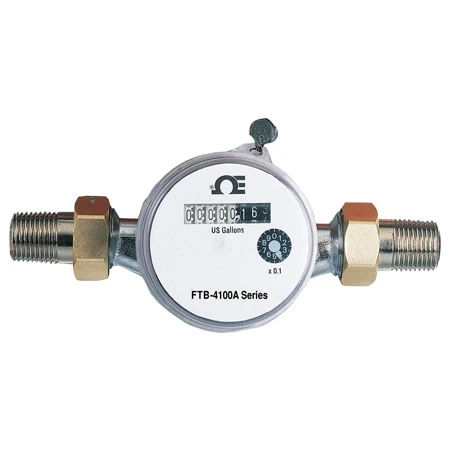

Specifically designed for water billing applications, OMEGA’s FTB-4000 flowmeters are highly accurate and feature tamper-resistant, non-resettable totalizers. The large faces are easy to read. Optional reed relay scaled pulse outputs allow for remote totalization (1.8 m (6 ft) of cable included). The pulse output option is factory installed and must be requested at the time of order. All FTB flowmeters feature built-in strainers, trickle flow indication and are shipped complete with locking nuts and coupling pieces.
SPECIFICATIONS
Accuracy:
   ?10% of continuous to max. flow: ±1.5% of reading
   <10% of continuous flow: ±2% of reading
Power for Pulse Output: 6-16 Vdc
Max. Temp: 90°C (200°F)
Max. Pressure: 150 psi
Pulse Outputs: Reed Relay: 4100P Series: 1 gal/pulse (for remote totalization only)
Max. Reading (gals): 10 million for ½” and ¾”; 100 million for 1″, 1¼”, 1½”
Wetted Parts: Brass body, stainless steel polyimide (fiberglass), polypropylene, EPDM O-Ring
Installation Requirements: 10 pipe diameters upstream, 5 downstream
Mounting: Horizontal or vertical for ½ ” and ¾” models, Horizontal Mounting Required for 1″ and 1½” models.
| Model No. | Flow Rate (GPM) | Connection | Lay Length mm (in) | Height mm (in) | Width mm (in) | Pressure Drop (psi) | Weight kg (lb) | Max Temp °C (°F) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Cont | Max | ||||||||
| FTB-4105A | 0.13 | 6.6 | 13.0 | ½ MNPT | 246 (9.7) | 69.9 (2.75) | 69.9 (2.75) | 3.6 | 0.5 (1.1) | 93.3 (200) |
| FTB-4105A-P | 0.13 | 6.6 | 13.0 | ½ MNPT | 246 (9.7) | 69.9 (2.75) | 69.9 (2.75) | 3.6 | 0.5 (1.1) | 93.3 (200) |
| FTB-4107A | 0.22 | 11.0 | 20.0 | ¾ MNPT | 257 (10.1) | 77.0 (3.03) | 69.9 (2.75) | 3.6 | 0.6 (1.4) | 93.3 (200) |
| FTB-4107A-P | 0.22 | 11.0 | 20.0 | ¾ MNPT | 257 (10.1) | 77.0 (3.03) | 69.9 (2.75) | 3.6 | 0.6 (1.4) | 93.3 (200) |
| FTB-4110A | 0.5 | 26.4 | 50.0 | 1 MNPT | 394 (15.5) | 140.0 (5.51) | 91.9 (3.62) | 3.6 | 2.5 (5.5) | 93.3 (200) |
| FTB-4115A | 0.8 | 44 | 90 | 1½ MNPT | 447 (17.6) | 140.0 (5.51) | 119.9 (4.72) | 3.6 | 5.5 (12) | 93.3 (200) |
| FTB-4120A | 1.3 | 66 | 132 | 2″ flange ANSI 150# | 200 (7.9) | 226.1 (8.9) | 154.9 (6.1) | 2.9 | 12.3 (27) | 90.0 (194) |
| FTB-4120A-P | 1.3 | 66 | 132 | 2″ flange ANSI 150# | 200 (7.9) | 226.1 (8.9) | 154.9 (6.1) | 2.9 | 12.3 (27) | 90.0 (194) |
| Output Signal | Not Applicable, Amplified Square Wave |
|---|---|
| Category | Meter |
| Media Type | Liquid |
| Flow Range | 0.22 to 20 GPM |
| Accuracy | ±1.5% |
| Max Operating Pressure | 150 psi |
| Max Process Temperature | 93 °C (200 °F) |
| Wetted Materials | Brass, SS, Polyimide, Polypropylene, EPDM |
| Process Connection Type | NPT Male |
| Process Connection Size | 3/4" |
| Display | Mechanical Counter |
