Sale!

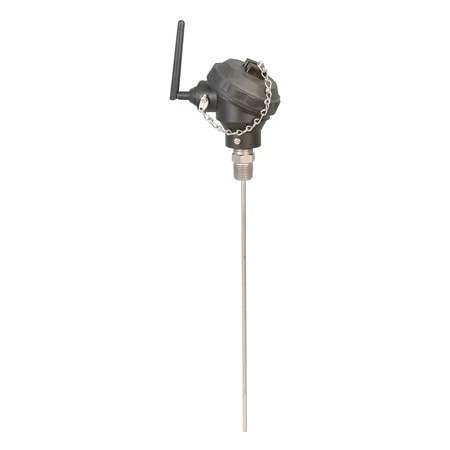

UW Series Wireless Thermocouple/RTD Transmitter In NB9 Head

Original price was: $350.00.Current price is: $99.99.

Available As Thermocouple or RTD Models
Free Software Converts Your PC Into a Multi-Channel Chart Recorder or Data Logger
Complete Industrial Assembly Includes: Probe, NB9 Head with Built-In Wireless Transmitter Board and Long Life Battery
Log data with Omega Enterprise Gateway(OEG)

Sensor Type

Sensor Connection

Clear

SKU: UWTC-NB9-CASS-316U-12 Categories: Probes with Industrial Heads, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Omega’s new Wireless Industrial Thermocouple and RTD Probe Assemblies feature a complete, ready to install, pre-wired sensor and wireless transmitter package. Each battery powered wireless unit will transmit measurement back to a host receiver up to 120 m (400′) away. Each unit comes pre-programmed to operate as a Type J, K, T, E, R,S, B, N or C thermocouple or RTD. When activated the unit will transmit readings continuously at pre-set time intervals that has been programmed by the user during the initial setup and installation. Each unit measures and transmits: process temperature, ambient temperature, wireless link signal strength and battery condition to the host and is displayed on the PC screen in real time using the provided free software.

SPECIFICATIONS
Thermocouple (TC) Models
Available Types: J, K, T, E, R, S, B, C or N
Thermocouple Measurement Range:
J: -100 to 760°C (-148 to 1400°F)
K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
TC Measurement Accuracy:
Type J, K: ±0.5% of reading or ±1.0°C (1.8°F), whichever is greater
Type T, E, N: ±0.5% of reading or ±2.0°C (3.6°F), whichever is greater
Type R, S, B, C: ±0.5% of full scale
TC Measurement Resolution:
1°C/1°F: Type J, K, T, E, N,
0.5°C: Type R, S, B, C
Cold Junction Compensation (Automatic): -10 to 70°C (14 to 158°F)
Resistive Temperature Device (RTD) models
Available Types: 100 Ω (standard), 500 Ω , 1000 Ω (special order)
Battery Life (Typical): 3 years (1 sample/minute reading rate @ 25°C (77°F))

Note: Note: Because of transmission frequency regulations, these products may only be used in the United States and Canada.

Sensor Type	K Thermocouple, RTD Pt 100, 385 Curve, RTD Pt 100, 392 Curve, J Thermocouple
Sensor Connection	12 L x 3/16 OD in, SS 304, 12 L x 1/4 OD in, SS 304, 24 L x 1/4 OD in, SS 304, 12 L x 1/8 OD in, SS 304, 12 L x 1/4 OD in, SS 316, 12 L x 1/8 OD in, SS 316, 300 L x 3.0 OD mm, SS 316, 300 L x 6.0 OD mm, SS 316, 600 L x 6.0 OD mm, SS 316, 6 L x 1/4 OD in, SS 304, 6 L x 1/4 OD in, SS 316, 12 L x 1/16 OD in, Inconel, 18 L x 1/16 OD in, Inconel, 12 L x 1/4 OD in, Inconel, 18 L x 1/4 OD in, Inconel, 24 L x 1/4 OD in, Inconel, 34 L x 1/4 OD in, Inconel, 6 L x 1/4 OD in, Inconel, 24 L x 1/8 OD in, SS 304, 6 L x 1/8 OD in, Inconel, 150 L x 6.0 OD mm, Inconel, 300 L x 6.0 OD mm, Inconel, 600 L x 6.0 OD mm, Inconel, 12 L x 1/16 OD in, SS 304, 6 L x 1/16 OD in, SS 304, 18 L x 1/4 OD in, SS 304, 34 L x 1/4 OD in, SS 304, 36 L x 1/4 OD in, SS 304, 60 L x 1/4 OD in, SS 304, 9 L x 1/4 OD in, SS 304, 18 L x 1/8 OD in, SS 304, 6 L x 1/8 OD in, SS 304, 9 L x 1/8 OD in, SS 304, 18 L x 3/16 OD in, SS 304, 24 L x 3/16 OD in, SS 304, 6 L x 3/16 OD in, SS 304, 130 L x 3.0 OD mm, SS 304, 150 L x 3.0 OD mm, SS 304, 300 L x 3.0 OD mm, SS 304, 600 L x 3.0 OD mm, SS 304, 300 L x 6.0 OD mm, SS 304, 450 L x 6.0 OD mm, SS 304, 600 L x 6.0 OD mm, SS 304, 250 L x 6.0 OD mm, SS 316, 18 L x 3/16 OD in, Inconel, 48 L x 1/4 OD in, SS 304, 8 L x 1/4 OD in, SS 304
Measurement Type	Temperature
Number of Channels	1
Form Factor	Head Mounted
Range	Short
Radio Frequency Compatibility	Global (2.4 GHz)
