V10-Series
Original price was: $86.00.$60.20Current price is: $60.20.
- Superior performance with rugged magnetically-actuated switching design and hermetically sealed reed switch
- Application flexibility with simple field switch adjustment allowing to toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection
- Save time and money on maintenance with electrical assembly that can be easily replaced without removing the unit from installation so that the process does not have to be shut down
- Solves application needs with full size, field-trimmable stainless steel vane provided with removable template calibrated for brass or ductile iron reducing tees with forged steel straight tee/bushing combinations
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Dwyer Instruments is now a DwyerOmega product brand.
Overview

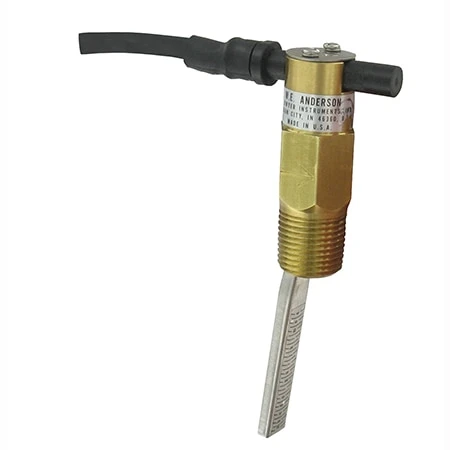

The Series V10 Flotect Mini-Size Flow Switches is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system. This series is available for field installation in pipelines from 1/2 to 2″ diameter and available in brass or 303 SS body.
Product Applications
Proving flow in boilers, hot water heaters, and chillersProtects pumps, motors and other equipment against low or no flow Automatically starts auxiliary pumps and engines.
| Max Operating Pressure | 1000 psig (69 bar), 2000 psig (138 bar) |
|---|---|
| Wetted Materials | 301 SS, Brass, Ceramic 8, 301 SS, 303 SS, Ceramic 8 |
| Body Material | Brass, 303 SS |
| Media Type | Liquid, Gas |
| Process Connection Type | NPT |
| Process Connection Size | 1/2" male NPT |
| Switch Rating and Type | 1.5 A SPST |
| Features | Trimmable Vane |
| Compliance | CE, UR, CSA |
| Switch Type | SPST, NO OR NC |
| Compatible Media | Liquid, Gas |
| Connection Size | 1/2 to 2" Pipe Size |
