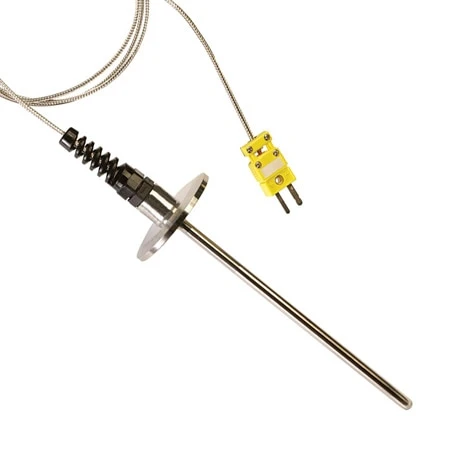

Vacuum Flanged Thermocouple Probes With Extension Cable

Original price was: $222.20.Current price is: $97.99.

For use with Vacuum Chambers and Vacuum Ovens with ISO 2061 Fittings #10, #16, #25 and #40 Standard
#10 and #16 Flanged Sensors Have 1/8′ Diameter Probes, #25 and #40 Flanged Sensors Have 1/4′ Diameter Probes
1 m (40′) PFA Insulated Cable with SS Overbraid and Strain Relief
304 SS Construction

Thermocouple Type

Process Temperature Max

Process Temperature Range

Process Connection Size

Probe Diameter

Probe Length

Clear

SKU: TCV-KU-2400-25-CB-40 Categories: Temperature Probes, Vacuum Flanged Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA™ Vacuum thermocouples are designed to be used in Vacuum Chambers or Vacuum Ovens or any process chamber that has an existing KF style flanged connection. #10 and #16 flanged sensors are provided with 1/8″ diameter, and #25 and #40 flanged sensors are provided with 1/4″ diameter probes. These sensors are available with 3″, 6″ and 12″ standard lengths and ungrounded junctions. Special Limits of Error (SLE) Type K, T and E calibrations, and 304 stainless steel sheaths and flanges. Cables are #24AWG stranded thermocouple wires with PFA Insulation, PFA jacket and stainless steel overbraid and SMPW connector. Please consult sales for other probe lengths, cable lengths, grounded junctions or other options.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	K, E, T
Process Temperature Max	900, 400
Process Temperature Range	0 to 900°C (32 to 1652°F), 0 to 400°C (32 to 752°F)
Process Connection Size	#25 KF Vacuum Flange, #16 KF Vacuum Flange, #40 KF Vacuum Flange, #10 KF Vacuum Flange
Probe Diameter	0.25 in, 0.125 in
Probe Length	24 in, 3 in, 6 in, 12 in
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sensor Application	Immersion Probe
Sheath Material	304 Stainless Steel
Junction Type	Ungrounded
Cable Insulation	PFA
Cable Length	40 in
Termination Connection Type	Stripped Leads
