Sale!

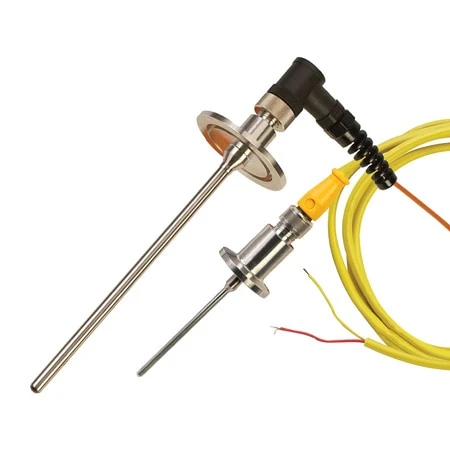

Vacuum Flanged Thermocouple Probes With M12 Connectors

Original price was: $212.11.Current price is: $98.99.

For use with Vacuum Chambers and Vacuum Ovens with ISO 2061 Fittings #10, #16, #25 and #40 Standard
#10 and #16 Flanged Sensors Have 1/8′ Diameter Probe
#25 and #40 Flanged Sensors Have 1/4′ Diameter Probes
M12 Connector with Thermocouple Pins, Maximum Temperature 85°C

Thermocouple Type

Process Temperature Range

Process Connection Size

Junction Type

Probe Diameter

Probe Length

Clear

SKU: TCV-KG-0300-10-M12 Categories: Temperature Probes, Vacuum Flanged Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA™ Vacuum thermocouples are designed to be used in Vacuum Chambers or Vacuum Ovens or any process chamber that has an existing KF style flanged connection. #10 and #16 flanged sensors are provided with 1/8″ diameter, and #25 and #40 flanged sensors are provided with 1/4″ diameter probes. Standard probes are available in K, T and E calibrations. * Please call sales for available options including special probe lengths

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	K, E, T
Process Temperature Range	0 to 900°C (32 to 1652°F), 0 to 400°C (32 to 752°F)
Process Connection Size	#10 KF VacuumFlange, #25 KF Vacuum Flange, #16 KF Vacuum Flange, #40 KF Vacuum Flange
Junction Type	Grounded, Ungrounded
Probe Diameter	0.125 in, 0.25 in
Probe Length	3 in, 12 in, 6 in
Category	Thermocouple
Sensor Application	Immersion Probe
Sheath Material	304 Stainless Steel
Termination Connection Type	M12 Connector
