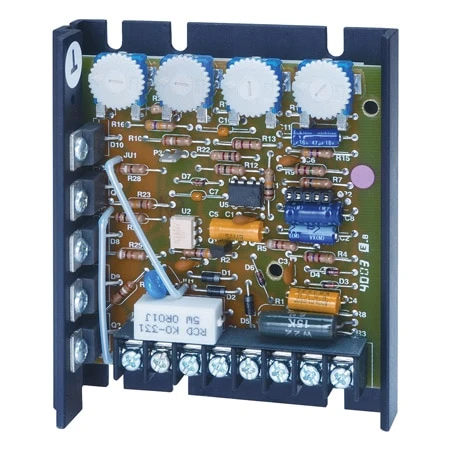

Variable Speed DC Motor Control W/ Adjustable Horsepower Settings

Original price was: $184.46.Current price is: $95.99.

Dual Voltage 120/240 Vac or 24/36 Vac
Adjustable Horsepower Settings
Full Wave Bridge Supply
1% Speed Regulation

Features

Clear

SKU: OMDC-125DV-C Categories: Control & Monitoring, Motion and Position, Speed Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMDC-125 Series variable speed DC Control is a cost efficient, reliable control for PM, shunt wound, and universal DC motors that incorporates up-to-date design and engineering into a compact package. Installation and field adjustments are facilitated using a barrier type terminal strip and large, easily adjustable trimpots. Adjustable horsepower range: 120 Vac 1/8 to 1/2 240 Vac 1/25 to 1/4 and 1/4 to 1. The OMDC-123DC model operates on low input voltage of 24/36 Vac with an output of 150 mA to 5.5 ADC.

Features	Standard, Independently Adjustable Linear Accel and Decel, 4 to 20 mA Isolated Signal Follower
Max Horsepower	1 HP
Input Voltage	120 Vac/240 Vac
Output Voltage	0 to 90 Vdc/0 to 180 Vdc
Current Rating	5 A
Form Factor	Chassis Mount
