SPECIFICATIONS
Stem Material: 316SS
Float Material: 316SS
Operating Temperature: -40 to 300°F; -40 to 480°F for LV-52
Pressure Rating: 150 PSI for LV-40 Series; 750 PSI for LV-50 Series
Mounting: 1 /8 NPT for LV-40; 1 /4 NPT for LV-50 Series
Switch: SPST Switch Actuation: Approx. 1 /2 the distance from end of stem to mounting, or at halfway point of float travel
Lead Wires: 22 awg. 24″ Polymeric; 18 awg. 24″ Polymeric for LV-50 Series
Specific Gravity of Float: LV-40: .62; LV-50: .64

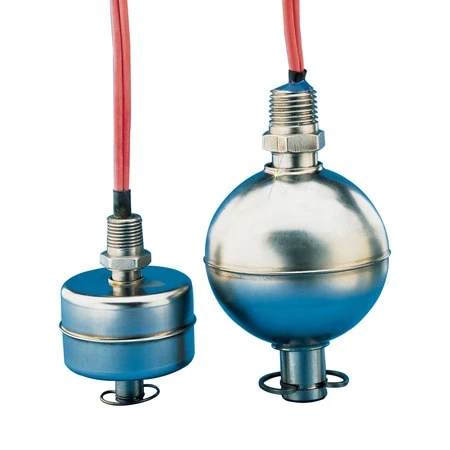

Vertical Mount 316 SS Liquid Level Switches
$205.70 Original price was: $205.70.$96.99Current price is: $96.99.
- Discontinued, replaced by LVN-40-50-Series.
- Well Suited for Rough or Corrosive Service
- Water Purifying and Medical Application Models
- High Pressure Models up to 750 PSI
SKU: LV-50 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

Constructed entirely of 316SS, the LV-40 Single Station Level Switch is specifically designed to withstand the effects of a wide range of chemicals. The unit has a maximum operating temperature of 300°F and can be used to meet many level control applications, including medical and water purification requirements. Its small float displacement permits high accuracy and reliability in shallow tanks and reservoirs. The LV-50 Series Level Switches offer superlative performance and dependability under the most severe operating conditions. The sensor incorporates a larger float displacement and all stainless steel construction for consistent level monitoring in liquids pressurized to a maximum 750 PSI. Ideal for level sensing in chemical plants and systems, models are available for temperatures up to 480°F. To determine fluid specific gravity, add 0.1 to float specific gravity in clean liquids and 0.3 to float specific gravity in dirty or viscous liquids.
| Max Operating Pressure | 750 psi, 100 psi |
|---|---|
| Process Connection Size | 1/4", 1/8" |
| Switch Rating and Type | 20 VA SPST, 10 VA SPST |
| Media Type | Liquid |
| Max Process Temperature | 149 °C (300 °F) |
| Wetted Materials | 316 SS |
| Process Connection Type | NPT Male |
| Features | Switch Type Selectable, NO or NC |
