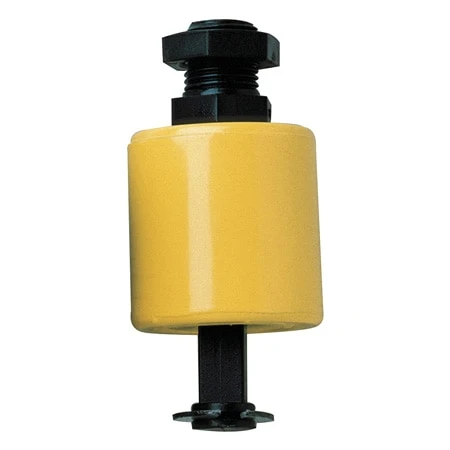

Vertical Mount Compact Single Station Level Switch

Original price was: $57.96.Current price is: $40.57.

Low Cost, Flexible Design
Mounts Vertically at Top or Bottom of Tank
Excellent for Smaller Restricted Areas
Sealed Reed Switch for High Reliability

SKU: LV-510 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA ® small displacement single station level switches are well suited for many OEM applications. Very compact, the switches are ideal for restricted or limited space. The overall length is 2.1 inches. The reed switch design allows the user to select either normally open or normally closed by simply removing the retaining clip and inverting the position of the float. Smooth surfaces are easy to keep clean and resist material buildup. Materials are compatible with a wide variety of chemicals.

SPECIFICATIONS
Accuracy: ±5 mm in water
Repeatability: ± 2 mm in water
Deadband Hysteresis: ±10 mm in water
Thread NPT: 1 /8 “
Length, Overall:2.3″ Float
Diameter: 1.00″
Cable: 2 ft, 2 wire, 22 gauge
Max. Temperature: -40 to 194°F
Min. Sp. Gravity Liquid: 0.8
Max. Switching Current: 50 VA @ 120 Vac
Signal Output: Dry switch closure, selectable, NO or NC states
Max. Pressure Rating: 25 psi ambient
Wetted Materials: Polypropylene (PP) or PVDF
Dimensions: 53 mm (2.3″) L x .8″ NPT

Please download PDF file below for full product specifications

Wetted Materials	Polypropylene, PVDF
Media Type	Liquid
Max Operating Pressure	25 psi
Max Process Temperature	90 °C (194 °F)
Process Connection Type	NPT Male
Process Connection Size	1/8"
Switch Rating and Type	50 VA SPST
Features	Switch Type Selectable, NO or NC
