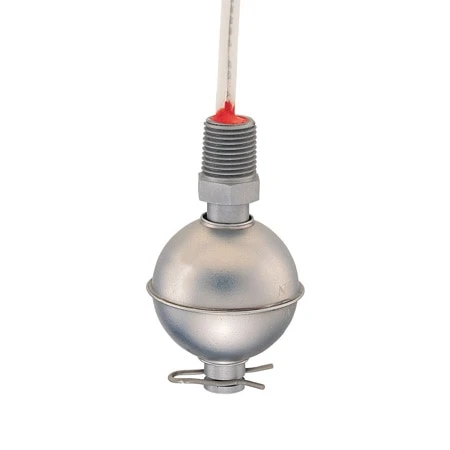

Vertical Mount High Temperature 316 SS, Liquid Level Switches

Original price was: $103.49.Current price is: $72.44.

NEMA-6 Rated
High Pressure Models up to 1000 PSI
User Selectable, Normally Open or Normally Closed
Mounts Vertically at Top or Bottom of Tank

Max Operating Pressure

Process Connection Size

Clear

SKU: LVN-50 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

These liquid level switches are sealed with potting compound. The only path for liquid to the electrical switch would be through the wires. If the wires are terminated in an appropriate manner (eg. –NEMA-6 connectors), the level switch will meet or exceed a NEMA-6 rating, making them suitable for submersion with years of worry free operation in moisture-laden environments. A sealed SPST switch provides consistent accuracy and high repeatability with the effects of shock, vacuum or vibration minimized. The switch is extremely versatile since it is user selectable as a normally open or normally closed by simply reversing the float or the mounting of the switch. The standard NPT male fittings allow for quick installation in either the top or bottom of the tank or vessel.

Max Operating Pressure	1,000 psi, 900 psi, 975 psi
Process Connection Size	1/8", 1/4"
Media Type	Liquid
Max Process Temperature	149 °C (300 °F)
Wetted Materials	316 SS
Process Connection Type	NPT Male
Switch Rating and Type	50 VA SPST
Features	Switch Type Selectable, NO or NC, Corrosive Applications
