VT-110: B&K Vibro Compact Vibration Velocity Transmitter With 4-20mA Output

Original price was: $380.36.Current price is: $96.99.

Vibration Velocity Output 4-20mA loop powered
Additional dynamic signal output – 100mV/g
High quality with glass sealed M12 connector
Compact size with superior “annular shear technology”

Acceleration Range

Frequency Range (Nominal)

Clear

SKU: VT-110/01/020 Categories: Accelerometers, Control & Monitoring, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

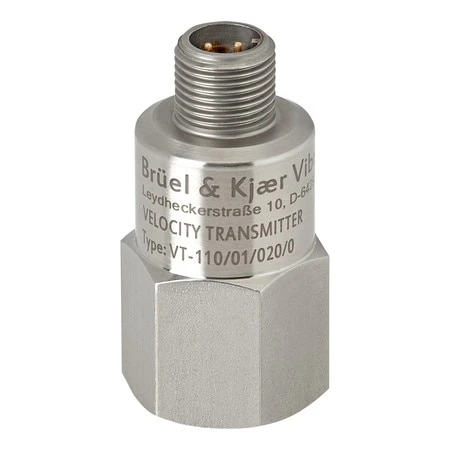

The hermetic sealed 4-20mA loop powered industrial vibration velocity transmitter type VT-110 is designed to monitor the vibration in harsh industrial environment. It uses the industry standard 4-20mA Loop that interfaces directly with PLC DCS and 4-20mA monitor inputs. Measurement frequency from 3 to 1 000 Hz and measurement range of 20mm/s and 50 mm/s will fit in nearly all applications. Their compact size allows for installation in tight places. The dynamic signal out-put (acceleration) allows vibration analysis.

VT-110: B&K Vibro Compact Vibration Velocity Transmitter With 4-20mA Output -Omega Engineering Sales Store VT 110 description

VT-110: B&K Vibro Compact Vibration Velocity Transmitter With 4-20mA Output -Omega Engineering Sales Store VT 110 dia

Acceleration Range	20 mm/sec, 50 mm/sec
Frequency Range (Nominal)	3 Hz to 1 kHz, 10 Hz to 1 kHz
Output Type	4 to 20 mA
Mounting Type	1/4” 28 UNF 2A
Features	100mV/g Additional dynamic signal output
