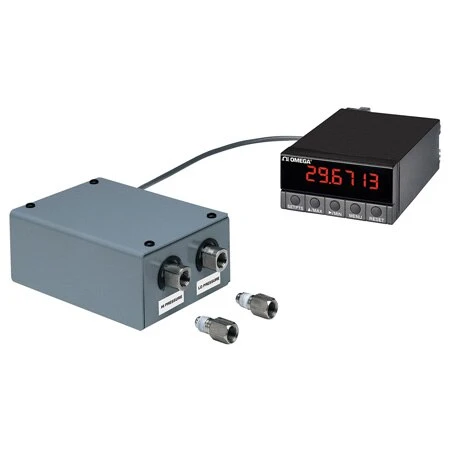

Wet/Wet Differential Pressure Transmitters For Industrial Media

Original price was: $374.00.Current price is: $96.99.

Liquids Can Be Applied to Both Ports
Zero And Span Adjustments for Field Calibration
Immune to Mounting Orientation or Vibration Errors
Rugged Steel NEMA-1 Enclosure

SKU: PX273-300DI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA PX273 is an all stainless steel wet/wet differential pressure transmitter, incorporating dual diffused piezoresistive sensing elements with stainless steel media isolation. The unit is compatible with all media encountered in industrial applications, including freon, ammonia, treated water, and steam. The PX273 is ideal for monitoring and controlling pump differential pressure, CW/HW system differential pressure, chiller/boiler differential pressure drop, and many other industrial applications.

SPECIFICATIONS
Excitation: 24 Vdc @ 50 mA
Output: 4 to 20 mA
Accuracy: ±0.75% FS
Zero Adjustment: ±50% FS
Span Adjustment: ±25% FS
Operating Temp: -18 to 82°C (0 to 180°F)
Compensated Temp: -18 to 65°C (0 to 150°F)
Thermal Effects:
Zero: ±0.025% FS/°F
Span: ±0.01% FS/°F
Max Static Pressure: 200% FS (each port)
Proof Pressure: 200% FS (each port)
Burst Pressure: 500% FS
Max Loop Res: 50 x (voltage supply – 14)
Response Time: 400 ms
Gage Type: Chemical vapor deposition
Wetted Parts: 316 stainless steel
Pressure Port: 1/8 NPTF
Electrical Conn: Screw terminals
Weight: 0.68 kg (1.5 lb)
Case: 16-gage steel
Dimensions: 51 H x 127 W x 89 mm D (2 x 5 x 3.5′)

Pressure Range	0 to 300 psi
Pressure Type	Differential
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±0.75%
Output Signal	Current
Electrical output	4 to 20 mA
Pressure Port Size	1/8"
Pressure Port Type	NPT Female
Connection/Termination	Terminal Block
Operating Temperature Range	-18 to 82 °C (0 to 180 °F)
