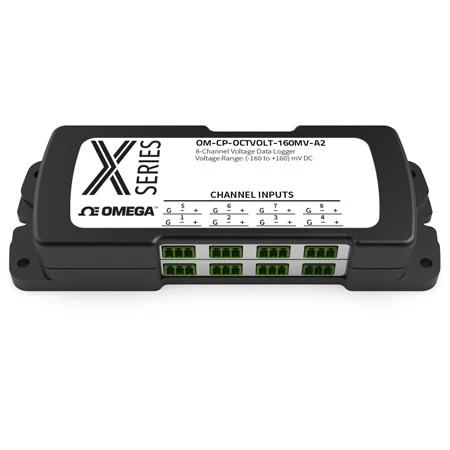

X-Series – Multi Channel Voltage Loggers

Original price was: $305.00.Current price is: $97.99.

Real-time Operation
Programmable Engineering Units
24-bit Readings Provide High Resolution
Up to 4 Hz Reading Rate

SKU: OM-CP-OCTVOLT-32V-A2 Categories: Data Loggers, Process Voltage and Current Data Loggers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The new OM-CP-VoltX Series consists of 4, 8, 12 and 16-channel, battery powered, DC voltage data logger with a reading rate of up to 4 Hz. X-Series devices ship with a standard USB-A to Micro USB cable for use with free OMCP PC based software. The X-series has a high memory capacity and increased download speed compared to previous generations of product.

This easy-to-use device features an 18 month typical battery life, user replaceable battery and programmable engineering units. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.

Using the OM-CP Data Logger Software, starting, stopping and downloading from the OM-CP-VoltX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.

Specifications

MEASUREMENT
Input Connection	Removable screw terminals
Model	160 mV	3.2 V	32 V
Voltage Range	±160 mV	±3.2 V	-8 V to +32 V
Voltage Resolution	0.02 mV	0.0004 mV	0.004 mV
Calibrated Accuracy	±0.032 mV	±0.0032 V	±0.02 V
Input Impedance	1 MΩ	125 kΩ	125 kΩ
Maximum Voltage Between Inputs to Ground	+3 V	+50 V	+50 V
Analog Conversion Time	150 ms
Frequency Rejection	60+50 Hz
Temprature Coefficient	25 ppm/℃
Specified Accuracy Range	Nominal range @ 25 ℃
Engineering Units	Native Measurement units can be scaled to display measurement units of another type. This is useful when monitoring current outputs from different types of sensors such as temprature, CO₂, flow rate and more.

GENERAL
Memory (All channels enabled)	4-channel: 698,709 readings per channel 8-channel: 349,354 readings per channel 12-channel: 232,903 readings per channel 16-channel: 174,677 readings per channel
Start Modes	Software programmable immediate start or delay start, up to 6 months in advance
Real Time Recording	May be used with PC to monitor and record data in real time
LEDs	1 per channel and 2 status LEDs
Reading Rate	4 Hz up to 1 reading every 24 hours
Calibration	Digital calibration through software
Calibration Date	Automatically recorded within device
Battery Type	9 V lithium included, user replaceable
Battery Life	18 months typical
Data Format	Date and time stamped V, mV, µV engineering units specified through software
Time Accuracy	±1 minute/month
Computer Interface	USB-A to micro USB cable (included); 460,800 baud
Operating System Compatibility	Windows XP SP3/7/8/10
Software Compatibility	Standard Software version 4.2.19.0 or later Secure Software version 4.2.18.0 or later
Operating Environment	-20 ℃ to +60 ℃(-4 ℉ to +140 ℉), 0 %RH to 95 %RH non-condensing
Dimensions	4-channel: 2.70 in × 7.25 in × 1.22 in (65.6 mm × 184.2 mm × 31.0 mm) 8-channel: 2.70 in × 7.25 in × 1.22 in (65.6 mm × 184.2 mm × 31.0 mm) 12-channel: 2.70 in × 7.25 in × 1.68 in (65.6 mm × 184.2 mm × 42.7 mm) 16-channel: 2.70 in × 7.25 in × 2.14 in (65.6 mm × 184.2 mm × 54.4 mm)
Weight	4-channel: 13 oz (368 g) 8-channel: 13 oz (368 g) 12-channel:20 oz (580 g) 16-channel: 28 oz (800 g)
Enclosure	Black anodized aluminum
Approvals	CE, ROHS

Number of Measurements	8, 4, 12, 16
Input Type	-8 to 32V, ±160mV, ±3.2mV
Measurement Type	V
Maximum Samples	Up to 2.8M
Display	None
Power	Battery, AC Power Adapter
Data Interface	USB
Max Sampling Rate	4 Hz
Additional Feature	NIST Traceable Calibration
